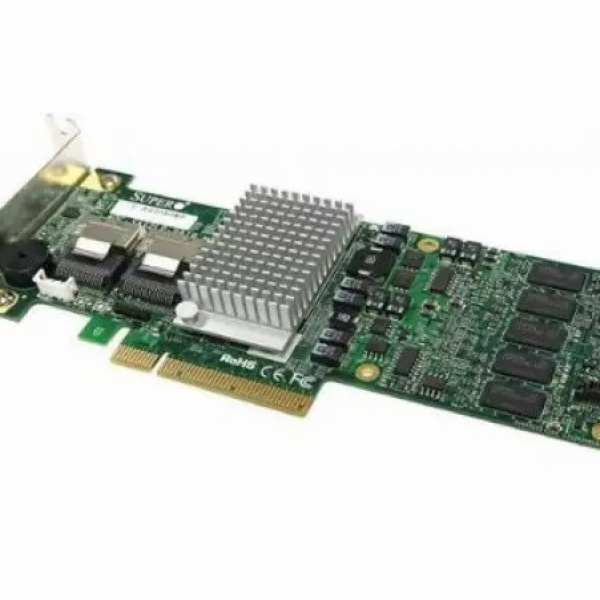

Supermicro Low Profile 6Gb/s Eight-Port SAS Internal RAID Adapter

The Supermicro UIO MegaRAID Low Profile AOC-USAS2LP-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the Broadcom SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of battery backup unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.

Using a Broadcom 2108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth, this UIO internal RAID adapter deliver an intelligent and robust RAID solution.

The AOC-USAS2LP-H8iR supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.
This product is only available through Supermicro.

Key Features

 * Low profile Gen2 PCI-E X 8

* 8 internal ports

* LSISAS 2108

* Supports RAID 0, 1, 5, 6, 10, 50, 60

* Supports 240 physical Devices

* 512MB DDR2 on-card cache – 800MHz

* Optional Battery Backup Unit (BTR-0018L-0000-LSI)

* Supports MegaRAID Storage Manager Software

* Supports 1.5, 3.0 and 6.0 Gb/s SAS and SATA data transfer rates

* OS Support : Windows XP,2k3,2k8,vista, RedHat Enterprise and SUSE Linux

* Fits 2uTwin chassis configuration

* Dimensions: 2.71" x 6.6 " (H x L)
