Product Type/Brand

Chassis Supermicro

PRODUCT SKUs

CSE-825TQC-R740LPB

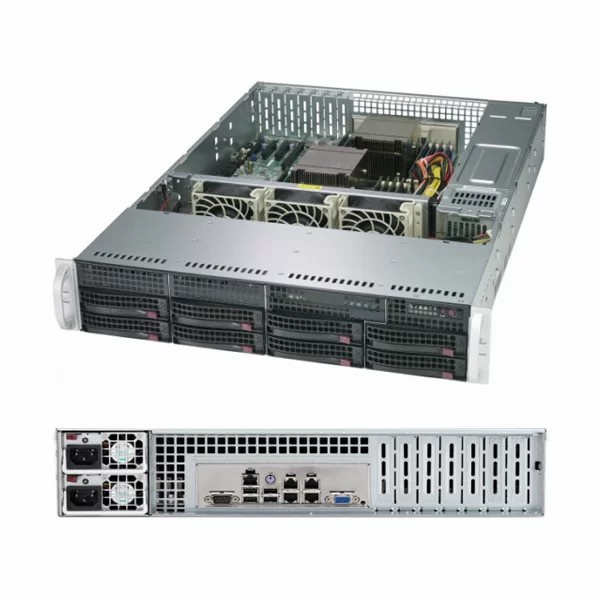

SuperChassis 825TQC-R740LPB

FORM FACTOR

2U chassis supports for maximum motherboard sizes – 13.68″ x 13″, E-ATX 12″ x 13″, ATX 12″ x 10″ motherboards

PROCESSOR SUPPORT

Dual and Single Intel® and AMD processors

DIMENSIONS

Height

3.5″ (89 mm)

Width

17.2″ (437 mm)

Depth

25.5″ (647 mm)

Gross Weight

52 lbs (23.59 kg)

Pakaging (W x H x L)

26.7″ (678 mm) x 11.4″ (290 mm) x 34.5″ (876 mm)

Available Color

Black

EXPANSION SLOTS

7 low-profile expansion slot(s)

DRIVE BAYS

8 x 3.5″ hot-swap SAS3/SATA drive bay
2 x 3.5″ fixed drive bay

BACKPLANE

8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD

PERIPHERAL DRIVES

Optional 1 x slim DVD-ROM drive bay
Optional 2 x USB 2.0 ports
Optional 1 x COM port tray
Optional 2 x USB 3.0 ports

FRONT PANEL

Buttons

Power On/Off button
System Reset Button

LEDs

2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED

SYSTEMS COOLING

Fans

3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)

POWER SUPPLY

1U 740W Redundant Platinum Power Supply W/PMbus

Power Efficiency

94%

Total Output Power and Input

740W with Input 100 – 240Vac

AC Input Frequency

50 – 60 Hz

Dimensions (L x W x H)

336 x 76 x 40 mm

Output Type

Backplanes (gold finger)

-12V

Max: NAA

+12V

Max: 61.7A / Min: 0.2A (100Vac – 240Vac)

+5Vsb

Max: 4A / Min: 0A

+12Vsb

Max: NAA

Power Distributor

PDB-PT825-8824
O/P: 12V/75
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6

Certification

Platinum Certified

REGULATORY (POWER SUPPLY)

Power Supply Safety / EMC

BSMI
CCC
FCC class A
TUV/CB
UL/CUL
