Product Type/Brand

Chassis Supermicro

PRODUCT SKUs

CSE-111TQ-563CB

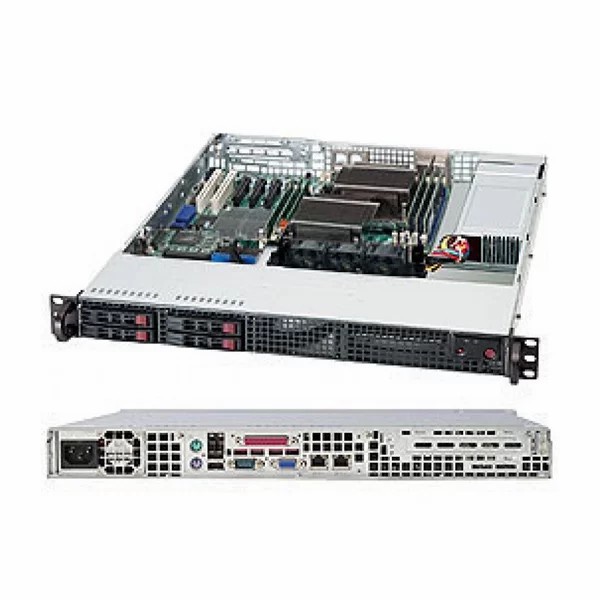

SuperChassis 111TQ-563CB

FORM FACTOR

1U Rackmount Chassis – supports for motherboard sizes of 12″ x 13″ E-ATX, 12″ x 10″ ATX, and 9.6″ x 9.6″ Micro-ATX

PROCESSOR SUPPORT

Dual, single Intel® / AMD processors

DIMENSIONS

Height

1.7″ (43 mm)

Width

16.8″ (426 mm)

Depth

21.95″ (558 mm)

Net Weight

29 lbs (13.15 kg)

Pakaging (W x H x L)

24″ (610 mm) x 8.3″ (211 mm) x 30″ (762 mm)

Available Color

Black

EXPANSION SLOTS

1 full-height & full-length expansion slot(s)

DRIVE BAYS

4 x 2.5″ hot-swap SAS/SATA drive bay
SAS or enterprise SATA HDD only recommended

BACKPLANE

4-port 1U SC809/SC111 TQ backplane (with enclosure management), support up to 4x 2.5-inch SAS/SATA HDD

PERIPHERAL DRIVES

Optional 1 x Slim DVD-ROM Drive

FRONT PANEL

Buttons

Power On/Off button
System Reset Button

LEDs

2 Network Activity LEDs
HDD activity LED
Power Status LED

SYSTEMS COOLING

Fans

3 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fan for PCI card cooling

POWER SUPPLY

1U 560W/600W Multi-output power supply Gold level, 24Pin output

Power Efficiency

92%

Total Output Power and Input

560W with Input 100 – 180Vac
600W with Input 180 – 240Vac

AC Input Frequency

50 – 60 Hz

Dimensions (L x W x H)

279.4 x 76 x 40.4 mm

Output Type

24pin ATX

-12V

Max: 0.5A / Min: 0A

+12V

Max: 46A / Min: 1A (100Vac – 180Vac)
Max: 49A / Min: 1A (180Vac – 240Vac)

+5V

Max: 18A / Min: 0.5A

+3.3V

Max: 15A / Min: 0.5A

+5Vsb

Max: 3A / Min: 0A

+12Vsb

Max: NAA

Certification

Gold Certified

REGULATORY (POWER SUPPLY)

Power Supply Safety / EMC

BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
