Product Type/Brand

Chassis Supermicro

PRODUCT SKUs

CSE-813MF2TQC-R804CB

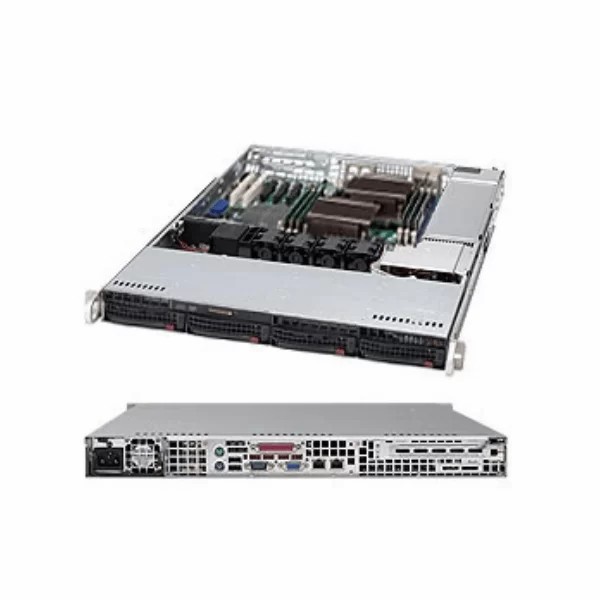

SuperChassis 813MF2TQC-R804CB

FORM FACTOR

1U chassis, support motherboard sizes: ATX 12″ x 10″ and Micro ATX 9.6″ x 9.6″

PROCESSOR SUPPORT

Dual and Single Intel® and AMD processors

DIMENSIONS

Height

1.7″ (43 mm)

Width

17.2″ (437 mm)

Depth

19.98″ (507 mm)

Gross Weight

33.5 lbs (15.2 kg)

Pakaging (W x H x L)

23.4″ (594 mm) x 8.5″ (216 mm) x 29.7″ (754 mm)

Available Color

Black

EXPANSION SLOTS

1 full height expansion slot(s)

DRIVE BAYS

4 x 3.5″ hot-swap SAS/SATA
SAS or enterprise SATA HDD only recommended

BACKPLANE

1U 4-Port 12Gbps Backplane Support 4×3.5

PERIPHERAL DRIVES

Optional 1 x Slim DVD-ROM Drive

FRONT PANEL

Buttons

Power On/Off button
System Reset Button

LEDs

2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED

SYSTEMS COOLING

Fans

4 x 40x28mm PWM fan(s)
Optional 2 x fans for AOC cooling

POWER SUPPLY

800W 1U redundant power supply

Power Efficiency

94%

Total Output Power and Input

750W with Input 100 – 127Vac
800W with Input 200 – 240Vac
800W with Input 230 – 240Vdc

AC Input Frequency

50 – 60 Hz

Dimensions (L x W x H)

220 x 54.5 x 40.25 mm

Output Type

Backplanes (gold finger)

+12V

Max: 62.5A / Min: 0.5A (100Vac – 127Vac)
Max: 66.6A / Min: 0.5A (200Vac – 240Vac)
Max: 66.6A / Min: 0.5A (230 – 240)

+5Vsb

Max: 4A / Min: 0A

Power Distributor

PDB-PT813M-2424
O/P: 120/62
+5V Max: 25
+3.3V Max: 25
-12V Max: 0.6

Certification

Platinum Certified

REGULATORY (POWER SUPPLY)

Power Supply Safety / EMC

BSMI
CCC
CE/EMC
UL/CB
