Product Type/Brand

Chassis Supermicro

PRODUCT SKUs

CSE-813MFTQC-505CB

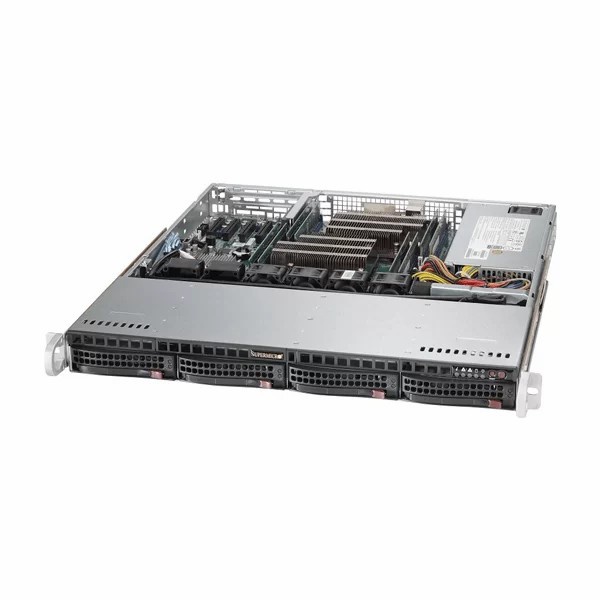

SuperChassis 813MFTQC-505CB

FORM FACTOR

1U Chassis for motherboard support size: (12″ x 10″) (9.6″ x 9.6″)

PROCESSOR SUPPORT

Dual, single Intel® / AMD processors

DIMENSIONS

Height

1.7″ (43 mm)

Width

17.2″ (437 mm)

Depth

19.85″ (503 mm)

Net Weight

N/A lbs (N/A kg)

Gross Weight

31 lbs (14.06 kg)

Pakaging (W x H x L)

23.4″ (594 mm) x 8.5″ (216 mm) x 29.7″ (754 mm)

Available Color

Black

EXPANSION SLOTS

1 full height expansion slot(s)

DRIVE BAYS

4 x 3.5″ hot-swap SAS/SATA drive bay with SES2

BACKPLANE

1U 4-Port 12Gbps Backplane Support 4×3.5

PERIPHERAL DRIVES

Optional 1 x Slim DVD-ROM Drive

FRONT PANEL

Buttons

Power On/Off button
System Reset Button

LEDs

2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED

SYSTEMS COOLING

Fans

4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s)

POWER SUPPLY

1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum

Power Efficiency

93%

Total Output Power and Input

500W with Input 100 – 240Vac

AC Input Frequency

50 – 60 Hz

Dimensions (L x W x H)

180 x 100 x 40 mm

Output Type

24pin ATX

-12V

Max: 0.2A / Min: 0A

+12V

Max: 41A / Min: 0.5A (100Vac – 240Vac)

+5V

Max: 15A / Min: 0.2A

+3.3V

Max: 12A / Min: 0.2A

+5Vsb

Max: 3A / Min: 0A

Certification

Platinum Certified

REGULATORY (POWER SUPPLY)

Power Supply Safety / EMC

BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
