Product Type/Brand

Chassis Supermicro

PRODUCT SKUs

CSE-813MTQ-600CB

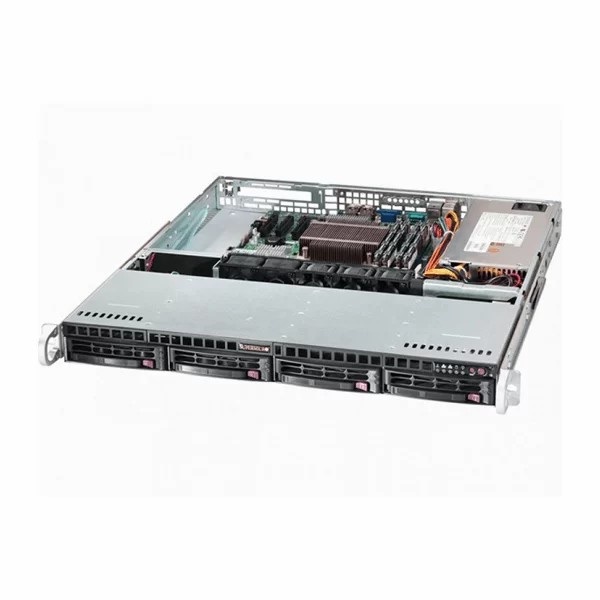

SuperChassis 813MTQ-600CB

FORM FACTOR

1U chassis supports for maximum motherboard sizes – ATX 12″ x 10″ and Micro-ATX 9.6″ x 9.6″

PROCESSOR SUPPORT

Dual, single Intel® / AMD processors

DIMENSIONS

Height

1.7″ (43 mm)

Width

17.2″ (437 mm)

Depth

19.85″ (503 mm)

Net Weight

31 lbs (14.06 kg)

Pakaging (W x H x L)

23.4″ (594 mm) x 8.5″ (216 mm) x 29.7″ (754 mm)

Available Color

Black

EXPANSION SLOTS

1 full-height & half-length expansion slot(s) (Riser Card Required)

DRIVE BAYS

4 x 3.5″ hot-swap SAS/SATA
SAS or enterprise SATA HDD only recommended

BACKPLANE

4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD

PERIPHERAL DRIVES

Optional 1 x slim DVD-ROM drive bay

FRONT PANEL

Buttons

Power On/Off button
System Reset Button

LEDs

2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED

Ports

2x USB Port(s)
1x Com Port(s)

SYSTEMS COOLING

Fans

4 x 4cm high performance PWM fan(s)
Optional 1 x fan for PCI card cooling

POWER SUPPLY

1U 600/680W Multi-output 80PLUS gold power supply, 24pin output

Power Efficiency

92%

Total Output Power and Input

600W with Input 100 – 140Vac
680W with Input 180 – 240Vac

AC Input Frequency

50 – 60 Hz

Dimensions (L x W x H)

220 x 100 x 40 mm

Output Type

24pin ATX

-12V

Max: 0.5A / Min: 0A

+12V

Max: 49A / Min: 1A (100Vac – 140Vac)
Max: 56A / Min: 1A (180Vac – 240Vac)

+5V

Max: 20A / Min: 1A

+3.3V

Max: 16A / Min: 0.8A

+5Vsb

Max: 3A / Min: 0A

+12Vsb

Max: NAA

Certification

Gold Certified

REGULATORY (POWER SUPPLY)

Power Supply Safety / EMC

BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
