Product Type/Brand

Chassis Supermicro

PRODUCT SKUs

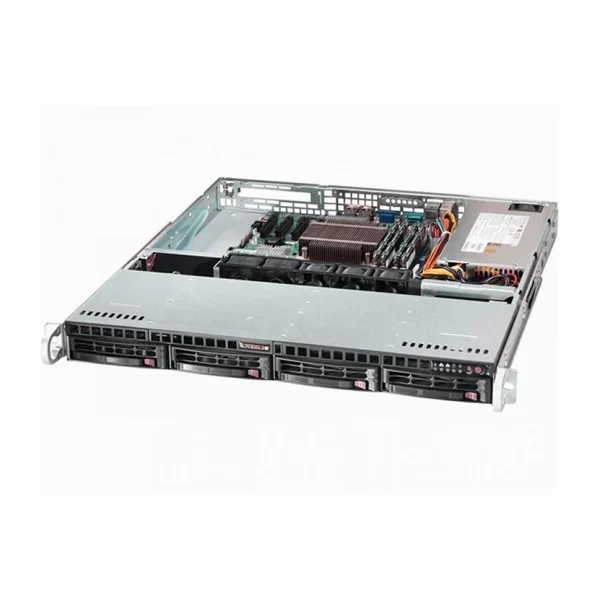

CSE-815TQ-563CB

SuperChassis 815TQ-563CB

FORM FACTOR

1U chassis support for motherboard size 13.68″ x 13″ and ATX 12″ x 10″, E-ATX 12″ x 13″

PROCESSOR SUPPORT

Dual and Single Intel® and AMD processors

DIMENSIONS

Height

1.7″ (43 mm)

Width

17.2″ (437 mm)

Depth

25.6″ (650 mm)

Gross Weight

36 lbs (16.33 kg)

Pakaging (W x H x L)

23.5″ (597 mm) x 8.5″ (216 mm) x 33.7″ (856 mm)

Available Color

Black

EXPANSION SLOTS

1 full-height & full-length expansion slot(s) (Riser Card Required)

DRIVE BAYS

4 x 3.5″ hot-swap SAS/SATA drive bay with SES2
SAS or enterprise SATA HDD only recommended

BACKPLANE

4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD

PERIPHERAL DRIVES

Optional 1 x Slim DVD-ROM Drive

FRONT PANEL

Buttons

Power On/Off button
System Reset Button

LEDs

2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED

Ports

2x USB & DB9 COM port tray

SYSTEMS COOLING

Fans

4 x 4cm heavy duty counter-rotating with optimal fan(s) speed control
Optional 2 x fan for PCI card cooling

POWER SUPPLY

1U 560W/600W Multi-output power supply Gold level, 24Pin output

Power Efficiency

92%

Total Output Power and Input

560W with Input 100 – 180Vac
600W with Input 180 – 240Vac

AC Input Frequency

50 – 60 Hz

Dimensions (L x W x H)

279.4 x 76 x 40.4 mm

Output Type

24pin ATX

-12V

Max: 0.5A / Min: 0A

+12V

Max: 46A / Min: 1A (100Vac – 180Vac)
Max: 49A / Min: 1A (180Vac – 240Vac)

+5V

Max: 18A / Min: 0.5A

+3.3V

Max: 15A / Min: 0.5A

+5Vsb

Max: 3A / Min: 0A

+12Vsb

Max: NAA

Certification

  Gold Certified

REGULATORY (POWER SUPPLY)

Power Supply Safety / EMC

BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
