Product Type/Brand

Chassis Supermicro

PRODUCT SKUs

CSE-825TQ-600LPB

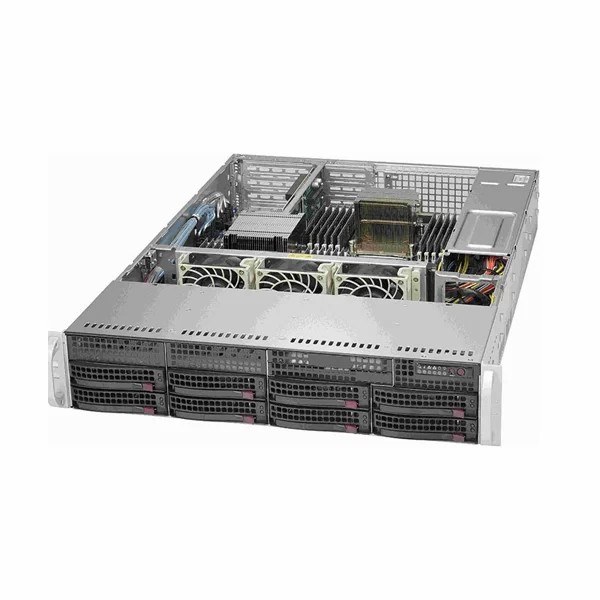

SuperChassis 825TQ-600LPB

FORM FACTOR

2U chassis supports for maximum motherboard sizes – 13.68″ x 13″, E-ATX 12″ x 13″, ATX 12″ x 10″ motherboards

PROCESSOR SUPPORT

Dual and Single Intel® and AMD processors

DIMENSIONS

Height

3.5″ (89 mm)

Width

17.2″ (437 mm)

Depth

25.5″ (647 mm)

Gross Weight

52 lbs (23.59 kg)

Pakaging (W x H x L)

26.7″ (678 mm) x 11.4″ (290 mm) x 34.5″ (876 mm)

Available Color

Black

EXPANSION SLOTS

7 low-profile expansion slot(s)

DRIVE BAYS

8 x 3.5″ hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
2 x 3.5″ fixed drive bay

BACKPLANE

8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD

PERIPHERAL DRIVES

Optional 1 x slim DVD-ROM drive bay
2 x USB 2.0 ports
1 x COM port tray
Optional 2 x USB 3.0 ports

FRONT PANEL

Buttons

Power On/Off button
System Reset Button

LEDs

2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED

SYSTEMS COOLING

Fans

3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)

POWER SUPPLY

1U 600W platinum efficiency multiple output power supply w/PMBus

Power Efficiency

92%

Total Output Power and Input

600W with Input 100 – 240Vac

AC Input Frequency

50 – 60 Hz

Dimensions (L x W x H)

279.4 x 76 x 40.4 mm

Output Type

24pin ATX

-12V

Max: 0.5A / Min: 0A

+12V

Max: 49A / Min: 0.5A (100Vac – 240Vac)

+5V

Max: 18A / Min: 0.5A

+3.3V

Max: 15A / Min: 0.5A

+5Vsb

Max: 3A / Min: 0A

+12Vsb

Max: NAA

Certification

Platinum Certified

REGULATORY (POWER SUPPLY)

Power Supply Safety / EMC

BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
