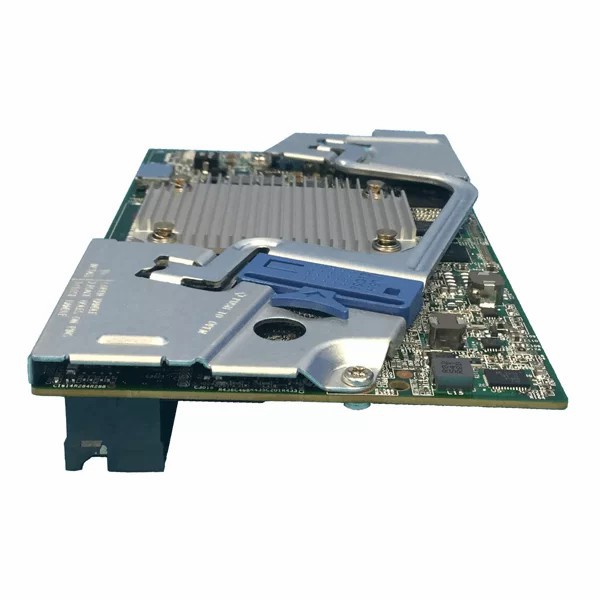

The HPE Smart Array P246br Controller is a Flexible Smart Array, 12Gb/s SAS RAID controller that provides enterprise-class storage performance and data protection for the HPE ProLiant BL460c Gen9 Server Blade when adding D2220sb in adjacent slot.

It features four internal physical links and delivers increased server uptime by providing advanced storage functionality with flash-backed write cache (FBWC). The Smart Array P246br Controller delivers increased server uptime by providing advanced storage functionality; including 1GB flash back write cache, pre-failure warning, and optional Secure Encryption. Data compatibility between HPE Smart Array Controllers means customers can easily upgrade to future Smart Array Controllers.

The Gen9 Server family of controllers supports the HPE Smart Storage Battery. With HPE Smart Storage Battery, multiple Smart Array controllers are supported without needing additional backup power sources for each controller, resulting in a simple upgrade process and at a reduced cost.

Key Features • Storage interface (SAS/SATA)
o 4 physical links across 4 x1 internal ports
o 12Gb/s SAS, 6Gb/s SATA technology
o Mix-and-match SAS and SATA drives to the same controller
o Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
• 1 GiBytes Flash-Backed Write Cache (FBWC)
• PCI Express Gen3 x8 link
• RAID 0, 1, 5, 6, 10
• RAID or HBA mode
• Legacy and UEFI boot operation
• Up to 4 physical drives
• Up to 64 logical drives
• HPE SmartCache (optional license)
• HPE Secure Encryption (optional license)
• HPE SSD Smart Path
• Rapid Parity Initialization (RPI)
• Rapid rebuild
• Drive Erase
• Performance Optimization-Degraded Reads and Read Coalescing
• Power Efficiency
• Seamless upgrades to and from other HPE Smart Array controllers
• Recovery ROM to protect against controller ROM corruption
• PCI Express flexible card
o Dimensions: 5.3 x 3.6 x 1.2 in (13.46 x 9.04 x 3.12 cm)
Ports • Internal: 4 SAS/SATA physical links across 4 x1 internal ports
Performance • 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
• 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
• PCI Express Gen3 x8 link width
• 1 GiBytes 40-bit DDR3-1866MHz Flash-Backed Write Cache provides up to 7.5GB/s
maximum cache bandwidth
• Read ahead caching
• Write-back caching
