A 12-Gb eight internal port SAS 3.0 mezzanine card with I/O Controller (IOC), advanced management, RAID 0,1 and hybrid RAID 5, JBOD and PCIe Generation 3

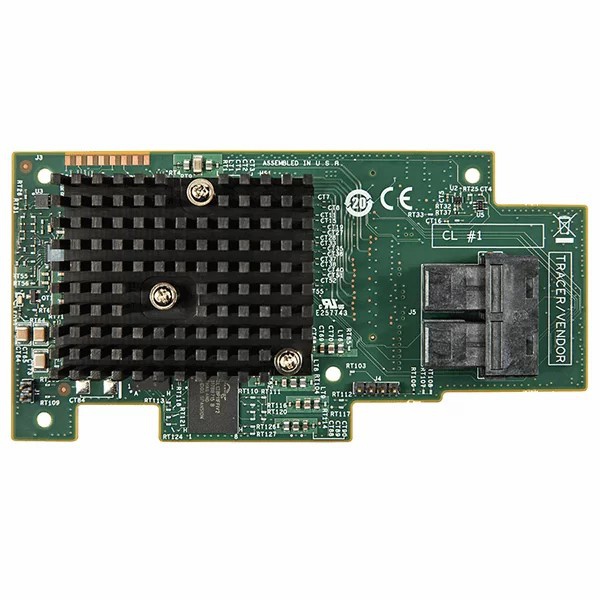

The Intel RMS3HC080 RAID Module is a PCI-Express 3.0 RAID adapter whose PCIe connector is a custom 80-pin connector capable of performance up to 8GT/s per lane. The Intel RAID Module is based on the LSISAS3008 I/O controller, uses a 16-MB Flash memory device for storing the BIOS and firmware, and controls eight internal SAS/SATA ports through two SFF-8643 mini-SAS HD-4i internal connectors.

- Product Collection: Intel® Integrated RAID (Modules/System Boards)

- Code Name: Products formerly Hermosa Canyon

- Status: Launched

- Launch Date: Q3'14

- Expected Discontinuance: Q2'23

- Long Life: Yes

- Target Market: Entry

- Board Form Factor: Mezzanine Module

- Data Transfer Rate: 12 Gb/s

- Supported Devices: SAS/SATA

- Supported Operating Systems: Windows, Linux, VMware

- RAID Level Supported: 0, 1, 10, 5, 50

- JBOD Mode: Yes

- # of Ports Internal: 8

- # of Devices Supported: 128

- PCIe Host Interface: PCIe x8 Gen3

- IO Processor Model: LSI3008

- Keying: SIOM Connector

- Connector Orientation: Side

- Extended Warranty Available for Purchase (Select Countries): Yes

- Additional Extended Warranty Details: Intel® RAID Extended Warranty

- Included Items: (1) Intel® Integrated RAID Module RMS3HC080, (4) standoffs, and (4) standoff locking pins
