Giới thiệu chung

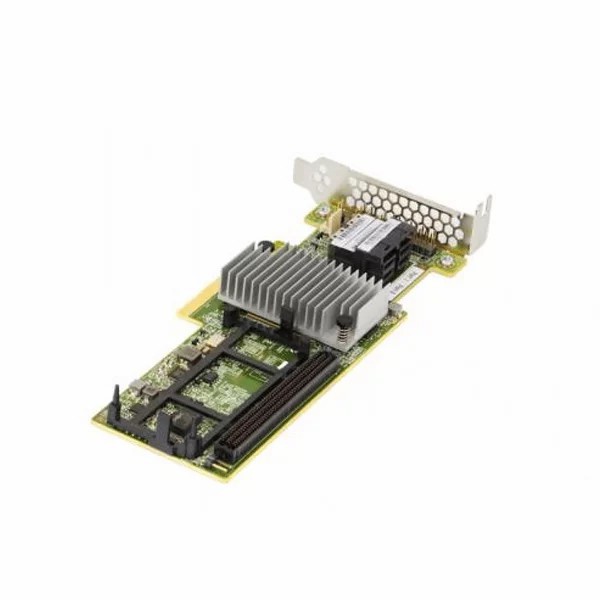

ServeRAID M5210 SAS/SATA Controller Card

Mã sản phẩm

46C9110

Hãng sản xuất

Lenovo

Xuất xứ

Chính hãng

Loại thiết bị

Controller Card

Tính năng

Card điều khiển SAS/SATA cho internal disk storage

Sản phẩm bao gồm

- One ServeRAID M5210 adapter with a full-height (3U) bracket

- One low-profile (2U) bracket

- Documentation package

Bộ vi xử lý

LSI SAS3108 12 Gbps RAID on Chip (ROC) controller.

Giao diện

PCI Express 3.0 x8

Raid support

- Support for RAID 0, 1, and 10 standard

- Support for RAID 5, 50, 6, and 60 with optional upgrades

Kết nối

- Support for SAS and SATA HDDs and SSDs

- Support for intermixing SAS and SATA HDDs and SSDs. Mixing different types of drives in the same array is not supported.

- Support for intermixing of 12 Gbps and 6 Gbps drives

- Connections to up to 32 internal drives, depending on the server model

- Optional support for self-encrypting drives (SEDs) with MegaRAID SafeStore.

- Optional support for SSD performance acceleration with MegaRAID FastPath and SSD caching with MegaRAID CacheCade.

- Support for up to 64 virtual disks, up to 128 arrays, up to 16 virtual disks per array, and up to 32 physical drives per array.

- Support for logical drive sizes greater than 2 TB.

Tương thích

Support for System x and dense servers with Xeon E5/E7 v4 and E3 v5 processors

- x3250 M6 (3943)

- x3250 M6 (3633)

- x3550 M5 (8869)

- x3650 M5 (8871)

- x3850 X6/x3950 X6 (6241, E7 v4)

- nx360 M5 (5465, E5-2600 v4)

Support for servers with Intel Xeon v3 processors

- x3500 M5 (5464)

- x3550 M5 (5463)

- x3650 M5 (5462)

- x3850 X6/x3950 X6 (6241, E7 v3)

- nx360 M5 (5465)

Support for servers with Intel Xeon v2 processors

- x3500 M4 (7383, E5-2600 v2)

- x3550 M4 (7914, E5-2600 v2)

- x3650 M4 (7915, E5-2600 v2)

- x3650 M4 BD (5466)

- x3650 M4 HD (5460)

- x3750 M4 (8752)

- x3750 M4 (8753)

- x3850 X6/x3950 X6 (3837)

- x3850 X6/x3950 X6 (6241, E7 v2)

- dx360 M4 (E5-2600 v2)
