> Lenovo ThinkSystem RAID 530-4i 2 Drive Adapter Kit for SN550 (7M27A03918)

Lenovo ThinkSystem RAID 530-4i 2 Drive Adapter Kit for SN550 (7M27A03918)

Đánh giá:

(Chưa có đánh giá)

Thương hiệu:

Lenovo

Part Number:

Giá bán:

Liên hệ
Giá tham khảo, giá hiện tại có thể thay đổi, xin vui lòng liên hệ 09.4554.6338 để biết giá chính xác nhất!!..

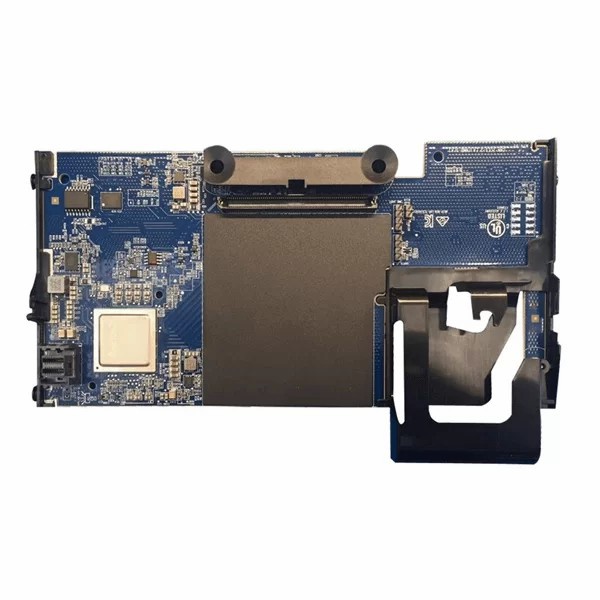

Card RAID Lenovo ThinkSystem 530-4i 2 Drive Adapter Kit for SN550

Sản Phẩm: Card RAID Lenovo

Part Number: 7M27A03918

RAID Level: 0, 1, 10

Controller Chip: LSI SAS3404

Bảo hành chính hãng 12 THÁNG

Liên hệ nhận báo giá

So sánh

Mô tả sản phẩm Thông số kỹ thuật

The ThinkSystem RAID 530 family are entry-level 12 Gb SAS/SATA internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0/1/10/5/50, and include an extensive list of RAS and management features.

Compatibility Notes	PCIe 3.0 x8 host interface. 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 9440 adapter family. Cacheless (not upgradeable). Connectivity for up to 4, or 8 internal SAS or SATA drives. Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported. Support for intermixing of 12 Gbps and 6 Gbps drives. Support for RAID 0, 1, 10, 5, and 50 standard (The 530-4i supports only RAID 0, 1 in the SN550 and RAID 0, 1, 10, 5 in the SN850 because those blade servers only support two and four drives respectively). Support for JBOD (non-RAID) drive state. Support for up to 64 virtual disks, up to 128 arrays, up to 16 virtual disks per array. Support for logical drive sizes greater than 2 TB. Configurable stripe size from 64 KB up to 1 MB. Supports 512e, 512n and 4K sector formatted drives. Compliant with Disk Data Format (DDF) configuration on disk (CoD). S.M.A.R.T. support.
Connectivity	Connector: Mini SAS HD 36-pin 4x (SFF-8643) Connector Type: SAS 12Gb/s Slot Type: PCI-Express 3.0
Contents	adapter, documentation
General	Adapter Type: RAID
Performance	Data Transfer Rate: 12GB/s
Ports/Connectors	(1) Mini-SAS HD x4 (SFF-8643)
Shipping Weight	2 lbs
System Requirements	Supported OS: Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 OS Required: Microsoft Windows Server 2012 R2 OS Required: Microsoft Windows Server 2016 OS Required: Red Hat Enterprise Linux 7 OS Required: Red Hat Linux Enterprise Server 6 x64 Edition OS Required: SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T OS Required: SuSE Linux Enterprise Server 11 with Xen for AMD64/EM64T OS Required: SuSE Linux Enterprise Server 12 OS Required: SuSE Linux Enterprise Server 12 with Xen OS Required: VMware vSphere 6.0 (ESXi) OS Required: VMware vSphere 6.5 (ESXi)
UNSPSC	43201400
