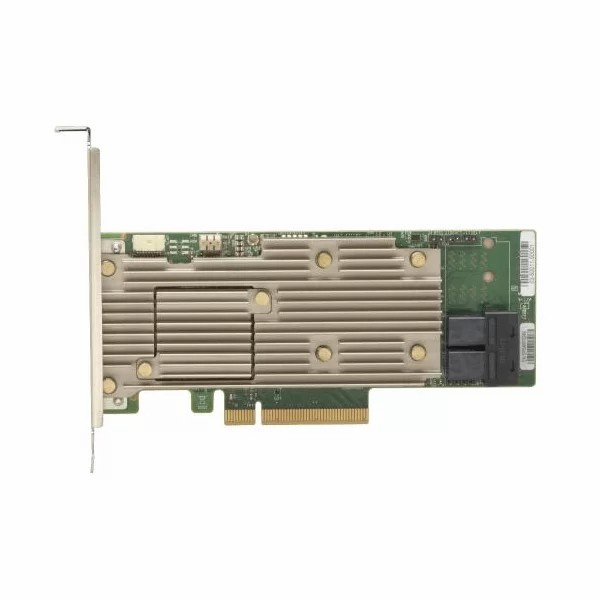

LSI MegaRAID 9460-8i RAID Controller

Đánh giá:

(Chưa có đánh giá)

Thương hiệu:

LSI

Part Number:

Giá bán:

Liên hệ
Giá tham khảo, giá hiện tại có thể thay đổi, xin vui lòng liên hệ 09.4554.6338 để biết giá chính xác nhất!!..

Interface : Low profile, x8 lane PCI Express® 3.1

Standard support : SAS, SATA, PCIe (NVMe) 12Gb/s

Connector : 2 Mini-SAS HD x4 SFF-8643

Number of ports : 8 ports Internal

Cache Memory : 2GB 2133MHz DDR4 SDRAM

Raid support : RAID levels 0, 1, 5, 6, 10, 50, 60

OS Support : Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/down-load-serach for details on versions.

Liên hệ nhận báo giá

So sánh

Mô tả sản phẩm Thông số kỹ thuật

Ensure critical data is protected and available with the most widely deployed RAID data protection architecture. Our broad range of MegaRAID® controller cards address virtually all direct-attached storage (DAS) environments – SATA or SAS, NVMe (PCIe), hard disk drives (HDDs) or solid state drives (SSDs), server-based storage or external direct-attached JBODs and storage enclosures.
MegaRAID® controller cards feature:

Reliable, trusted RAID data protection for critical applications
Performance to support the most demanding server storage workloads and solid state drives
Architectural and deployment flexibility with internal and external connectivity options
Broad interoperability with server and storage infrastructure to ease integration
Additional peace of mind and performance with optional features including flash cache protection and self-encrypting drive management

Specification	Value
Lifecycle	Active
Distrib. Inventory	No
Management Software	LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Cache Protection	CacheVault CVPM05
Physical Dimensions	Low profile 6.127” x 2.712”
Host Bus Type	x8 lane PCI Express® 3.1
Cache Memory	2GB 2133 MHz DDR4 SDRAM
Internal Ports	8
Devices Supported	SAS/SATA: 240, NVMe: 24
Internal Connectors	2 Mini-SAS HD x4 SFF-8643
Operating Temperature	0°C to 55°C
Operating Voltage (V)	+12V +/-8%, 3.3V +/-9%
OS	Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Regulatory Certifications	Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty	3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
I/O Processor / SAS Controller	SAS3508 dual-core RAID-on-Chip (ROC)

LSI MegaRAID 9460-8i RAID Controller
