Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
Form-factor friendly cable exit
Support critical, high-bandwidth applications with PCIe 4.0 connectivity
Balance protection and performance for critical applications with RAID 0, 00, 1, 5, 6, 10, 50 and 60
JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
Add more protection and peace of mind with CacheVault flash cache protection
The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-16i adapter, based on the SAS3916 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.
The 9560-16i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-16i is instrumental in getting the most performance and flexibility out of U.3 backplanes:
With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.
|
Specification |
Value |
|
Lifecycle |
Active |
|
Distributor Inventory |
No |
|
Cache Memory |
8GB |
|
Cache Protection |
CacheVault CVPM05 |
|
Data Transfer Rates |
12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant |
|
Devices Supported |
SAS/SATA: 240, NVMe: 32 |
|
Generation |
12 Gb/s |
|
Host Bus Type |
x8 lane PCI Express 4.0 |
|
I/O Processor / SAS Controller |
SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC) |
|
Internal Connectors |
2 x8 SFF-8654 (SlimSAS) |
|
Internal Ports |
16 |
|
Management Software |
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
|
MTBF |
>3,000,000 hours at 40° C |
|
Operating Temperature°C |
0°C to 55°C |
|
OS |
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
|
Physical Dimensions |
Low profile 6.127” x 2.712” |
|
RAID Levels |
0, 00, 1, 10, 5, 6, 60 |
|
Regulatory Certifications |
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
|
Warranty |
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |

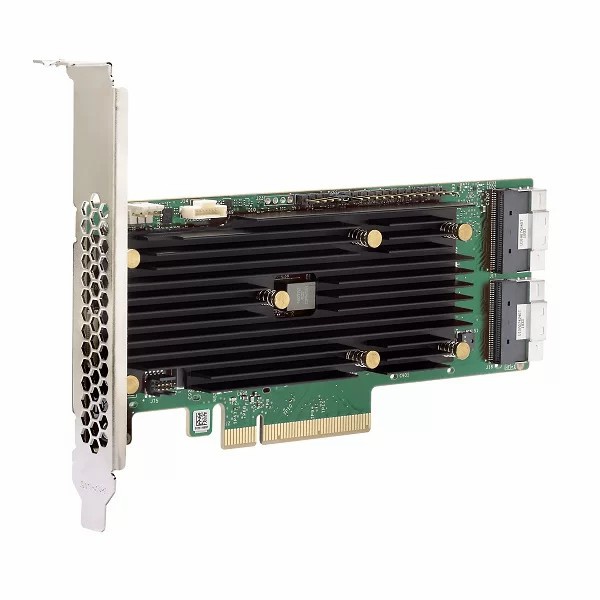

LSI MegaRAID 9560-16i RAID Controller
