Solution Provided

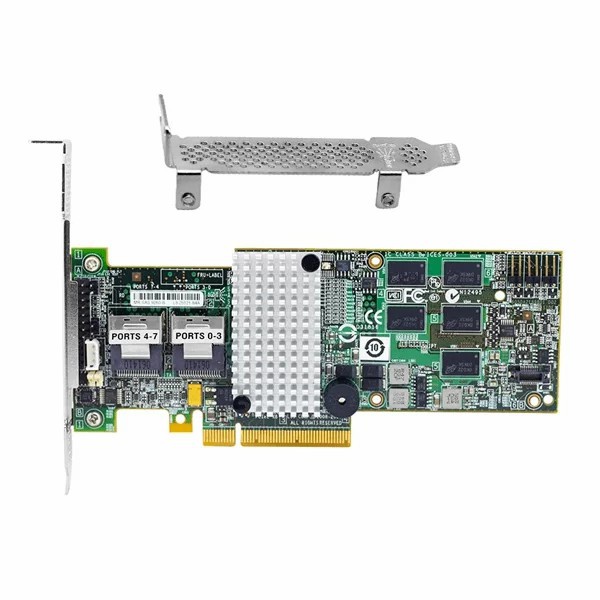

Eight-port internal SATA+SAS solution for high-density servers and workstations using up to 32 drives with the flexibility to use both SATA and SAS hard drives and solid state drives (SSDs)

Physical Dimensions

MD2 Low profile (6.6” X 2.536”)

Connectors

Two Mini-SAS SFF-8087 internal connectors

Device Support

Up to 32 SATA and/or SAS hard drives and SSDs

Host Bus Type

x8 lane PCI Express 2.0 Compliant

Data Transfer Rates

Up to 6Gb/s per port

I/O Processor/SAS Controller

LSISAS2108 RAID-on-Chip (ROC)

Cache Memory

512MB 800MHz DDR II SDRAM

Key RAID Data Protection Features

• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50 and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM)
• Single controller Multipathing (failover)
• Load Balancing
• Configurable stripe size up to 1MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SafeStore™ Encryption Services
  -Instant Secure Erase
  -Local Key Management*
• SSD Support with SSD Guard™
• Patrol read for media scanning and repairing
• 64 logical drive support
• Up to 64TB LUN support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T support
• Global and dedicated Hot Spare with Revertible Hot Spare support
  - Automatic rebuild
  - Enclosure affinity
  - Emergency SATA hot spare for SAS arrays
• Enclosure management
  - SES(inband)
  - SGPIO(sideband)

Operating Temperature

Maximum ambient: 60°C (44.5°C w/iBBU)

Operating Voltage

+3.3V

Regulatory Certifications

EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick

RAID Management

MegaRAID Management Suite
- MegaRAID Storage Manager™
- MegaCLI (command-line interface)
- WebBIOS

OS Support

Extensive support includes Microsoft® Windows® Vista/Server 2003/2000/XP, Linux® and more. Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/support
