The controller card consists of eight internal 6 Gb/s SATA+ SAS ports over two mini-SAS (SFF8087) internal connectors
With 1GB DDR3 cache memory, the card also supports PCIe 3.0 host interface
Supports RAID levels 0, 1, 5, 6, 10, 50, 60
Support for optional heat-tolerant battery backup module
Datacenter, cloud and high-performance computing environments need storage capacity to handle massive volumes of data, and must provide data protection and performance to meet the needs of applications and end users. The MegaRAID® SAS 9270-8i 6Gb/s SAS and SATA RAID Controller Card delivers the performance and RAID data protection for a wide range of Server storage applications.
- Connect up to 128 SATA or SAS drives with eight internal 6Gb/s SATA+SAS ports
- Fit into rack-mounted servers with low-profile form factor and top-mounted SAS connectors
- Bandwidth to support critical applications with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional heat-tolerant battery backup
|
Product |
Ordering Part # |
What's in the box |
|
MegaRAID SAS 9270-8i |
LSI00326 |
MegaRAID SAS 9270‐8i, QIG, LP bracket |
|
|
||
|
Specifications |
Value |
|
|
RAID-on-Chip Controller |
LSISAS2208 Dual-Core RAID on Chip (ROC) |
|
|
Cache Protection |
LSIiBBU09, optional intelligent battery backup module that remotely connects to the adapter |
|
|
RAID Management Software |
MegaRAID Management Suite™ |
|
|
Physical Dimensions |
MD2 Low profile (6.6" x 2.536") |
|
|
Host Bus Type |
x8 lane PCI Express® 3.0 |
|
|
Cache Memory |
1GB 1333MHz DDRIII SDRAM |
|
|
Internal Ports |
8 |
|
|
Data Transfer Rates |
Up to 6Gb/s per port |
|
|
Devices Supported |
Up to 128 SAS and/or SATA devices |
|
|
Internal Connectors |
2 Mini-SAS SFF8087 (top mount) |
|
|
MTBF |
766,841 hours |
|
|
Operating Temperature |
Maximum ambient: Controller Card: 60°C (55°C with optional LSIiBBU09) |
|
|
Operating Voltage |
+3.3V |
|
|
Operating Systems |
Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems: lsi.com/support |
|
|
Regulatory Certifications |
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick |
|

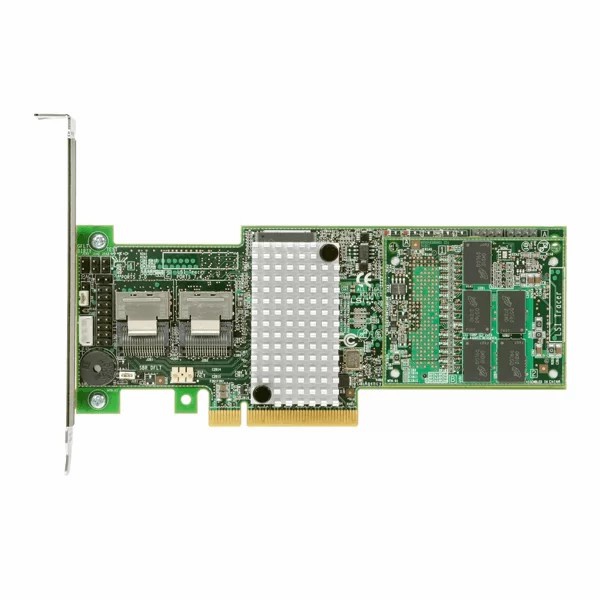

LSI MegaRAID SAS 9270-8i RAID Controller
