Connect up to 128 SATA or SAS drives with four internal 6 Gb/s SATA and SAS ports
Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60

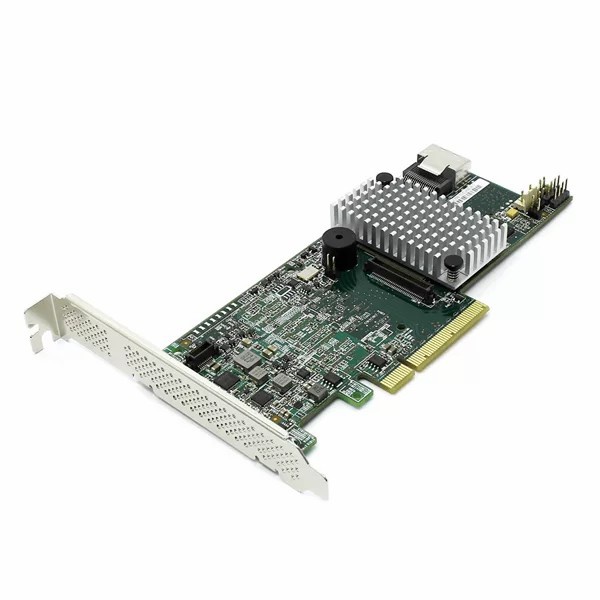

LSI MegaRAID SAS 9271-4i
A cost-effective solution where hardware RAID data protection and performance is a requirement. The MegaRAID® SAS 9271-4i SATA and SAS RAID controller’s dual-core RAID-on-Chip processor (ROC) frees the host processor from data protection duties, leaving more resources for application processing.
- Connect up to 128 SATA or SAS drives with four internal 6 Gb/s SATA and SAS ports
- Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Bandwidth to support critical applications with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional CacheVault® flash cache or heat-tolerant battery backup
|
Product |
Ordering Part # |
What's in the box |
|
MegaRAID SAS 9271-4i |
LSI00328 |
MegaRAID SAS 9271-4i, QIG, LP bracket |
|
|
||
|
Specifications |
Value |
|
|
RAID-on-Chip Controller |
LSISAS2208 Dual-Core RAID on Chip (ROC) |
|
|
Cache Protection |
optional MegaRAID CacheVault flash cache protection module (LSICVM01) |
|
|
RAID Management Software |
MegaRAID Management Suite™ |
|
|
Physical Dimensions |
MD2 Low profile (6.6" x 2.536") |
|
|
Host Bus Type |
x8 lane PCI Express® 3.0 |
|
|
Cache Memory |
1GB 1333MHz DDRIII SDRAM |
|
|
Internal Ports |
4 |
|
|
Data Transfer Rates |
Up to 6Gb/s per port |
|
|
Devices Supported |
Up to 128 SAS and/or SATA devices |
|
|
Internal Connectors |
1 Mini-SAS SFF8087 (side mount) |
|
|
MTBF |
1,031,514 hours |
|
|
Operating Temperature |
Maximum ambient: Controller Card: 60°C (55°C with optional LSIiBBU09) |
|
|
Operating Voltage |
+3.3V, +12V |
|
|
Operating Systems |
Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. |
|
|
Regulatory Certifications |
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick |
|
LSI MegaRAID SAS 9271-4i RAID Controller
