Product

Ordering Part #

What's in the box

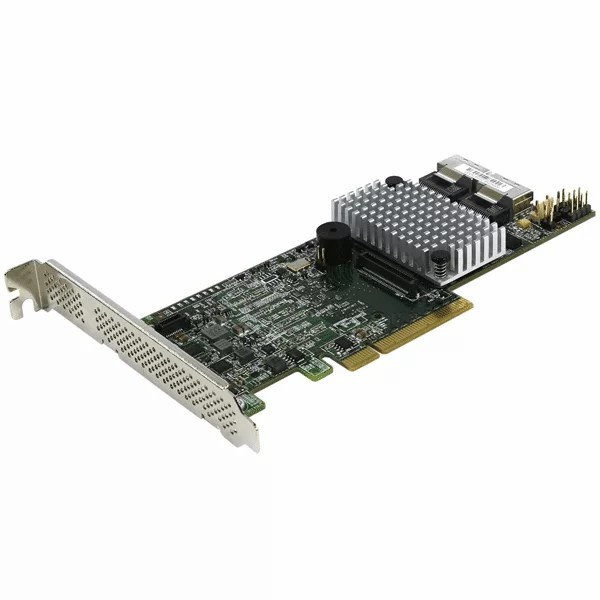

MegaRAID SAS 9271-8i

LSI00330

MegaRAID SAS 9271-8i, QIG, LP bracket

Specifications

Value

RAID-on-Chip Controller

LSISAS2208 Dual-Core RAID on Chip (ROC)

Cache Protection

optional MegaRAID CacheVault flash cache protection module (LSICVM01)
optional MegaRAID LSIiBBU09 intelligent battery backup module (LSIiBBU09)

RAID Management Software

MegaRAID Management Suite™
MegaRAID Storage Manager™
MegaCLI (command-line interface)
WebBIOS

Physical Dimensions

MD2 Low profile (6.6" x 2.536")

Host Bus Type

x8 lane PCI Express® 3.0

Cache Memory

1GB 1333MHz DDRIII SDRAM

Internal Ports

8

Data Transfer Rates

Up to 6Gb/s per port

Devices Supported

Up to 128 SAS and/or SATA devices

Internal Connectors

2 Mini-SAS SFF8087 (side mount)

MTBF

1,031,514 hours

Operating Temperature

Maximum ambient: Controller Card: 60°C (55°C with optional LSIiBBU09)

Operating Voltage

+3.3V, +12V

Operating Systems

Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems: lsi.com/support

Regulatory Certifications

EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
