Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
When hard drive performance isn’t enough, adding solid state drives (SSDs) as a front-end cache is a cost-effective way to increase application performance. The MegaRAID® SAS 9271-8iCC SATA and SAS RAID controller card features built-in CacheCade® Pro software for turning attached SSDs into front-end flash cache. Users see faster access times while protecting investments in existing hard disk drive (HDD) infrastructure.
- Connect up to 128 SATA or SAS drives with eight internal 6 Gb/s SATA and SAS ports
- Connect up to 32 SSDs as front-end flash cache to accelerate performance of hard drive arrays
- Fit into rack-mounted servers with low-profile form factor, PCIe® 3.0 connectivity, and side-mounted SAS connectors
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional CacheVault® flash cache protection and heat-tolerant battery backup cache protection modules
|
Product |
Ordering Part # |
What's in the box |
|
MegaRAID SAS 9271-8iCC |
LSI00334 |
MR SAS 9271-8iCC (RAID controller with CacheCade Pro 2.0 and Fast Path software enabled), QIG, LP bracket |
|
|
||
|
Specifications |
Value |
|
|
RAID-on-Chip Controller |
LSISAS2208 Dual-Core RAID on Chip (ROC) |
|
|
Cache Protection |
optional MegaRAID CacheVault flash cache protection module (LSICVM01) |
|
|
RAID Management Software |
MegaRAID Management Suite™ |
|
|
Physical Dimensions |
MD2 Low profile (6.6" x 2.536") |
|
|
Host Bus Type |
x8 lane PCI Express® 3.0 |
|
|
Cache Memory |
1GB 1333MHz DDRIII SDRAM |
|
|
Internal Ports |
8 |
|
|
Data Transfer Rates |
Up to 6Gb/s per port |
|
|
Devices Supported |
Up to 128 SAS and/or SATA devices |
|
|
Internal Connectors |
2 Mini-SAS SFF8087 (side mount) |
|
|
MTBF |
1,031,514 hours |
|
|
Operating Temperature |
Maximum ambient: Controller Card: 60°C (55°C with optional LSIiBBU09) |
|
|
Operating Voltage |
+3.3V, +12V |
|
|
Operating Systems |
Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems: lsi.com/support |
|
|
Regulatory Certifications |
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick |
|

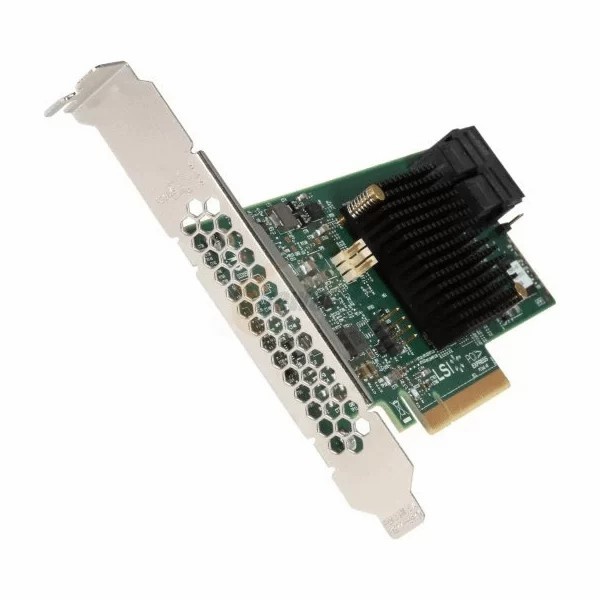

LSI MegaRAID SAS 9271-8iCC RAID Controller
