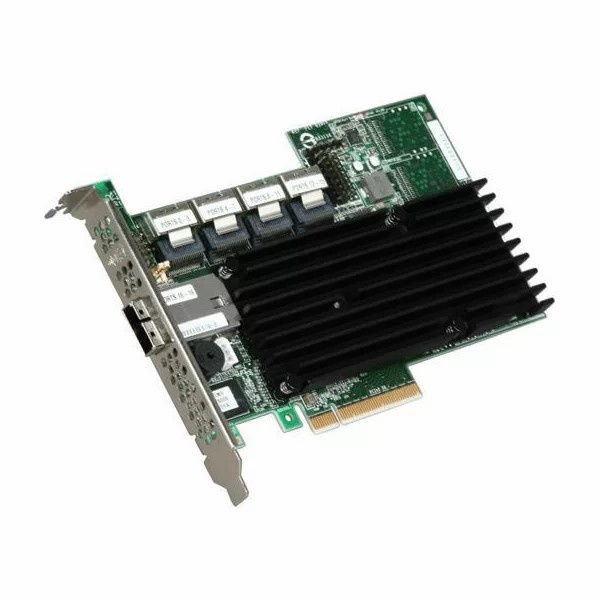

Solution Provided

Sixteen-port internal / Four-port external SATA+SAS solution for internal drive storage and external JBOD expansion using up to 240 SAS and/or SATA drives

Physical Dimensions

Half-Length, Full Height (6.6” x 4.376”)

Internal Connectors

Four Mini-SAS SFF8087 4i internal connectors

External Connectors

One Mini-SAS SFF8088 4x external connector

Device Support

Up to 240 SAS and/or SATA hard drives

Host Bus Type

x8 lane PCI Express 2.0 Compliant

Data Transfer Rates

Up to 6Gb/s per port

I/O Processor/SAS Controller

LSISAS2108 RAID on Chip (ROC) and LSISAS2x36 Expander

Cache Memory

512MB 800MHz DDR II SDRAM

Key RAID Data Protection Features

• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50 and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during array rebuild or reconstruction (RLM)
• Single controller Multipathing (failover)
• Load Balancing
• Configurable stripe size up to 1MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SafeStore Encryption Services
  - Instant Secure Erase
• SSD Support with SSD Guard™
• Patrol read for media scanning and repairing
• 64 logical drive support
• Up to 64TB LUN support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T support
• Global and dedicated Hot Spare with Revertible Hot
  Spare support
  - Automatic rebuild
  - Enclosure affinity
  - Emergency SATA hot spare for SAS arrays
• Enclosure management
  - SES (inband)
  - SGPIO (sideband)

Operating Temperature

Maximum ambient: 60°C (45°C w/iBBU)

Operating Voltage

+3.3V

Regulatory Certifications

EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick

RAID Management

MegaRAID Management Suite
-MegaRAID Storage Manager
-MegaCLI (command-line interface)
-WebBIOS

OS Support

Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support
