Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
Scale-out your storage infrastructure to meet the needs of data-hungry applications. The MegaRAID® SAS 9286-8e SAS and SATA RAID controller meets the high I/O transaction demands of datacenter and enterprise applications such as databases. A low-profile design allows even workstations and compact servers to connect to external JBOD disk arrays while meeting footprint and density needs.
- Connect up to 240 SATA or SAS drives with eight external 6Gb/s SATA and SAS ports
- Fit into workstations, compact and rack-mounted servers
- Bandwidth to support critical applications and Solid State Drive arrays with PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with options including heat-tolerant battery backup modules
|
Product |
Ordering Part # |
What's in the box |
|
MegaRAID SAS 9286-8e |
LSI00332 |
MR SAS 9286-8e, QIG, LP bracket |
|
|
||
|
Specifications |
Value |
|
|
RAID-on-Chip Controller |
LSISAS2208 Dual-Core RAID on Chip (ROC) |
|
|
Cache Protection |
LSIiBBU09, optional intelligent battery backup module that remotely connects to the adapter |
|
|
RAID Management Software |
MegaRAID Management Suite™ |
|
|
Physical Dimensions |
MD2 Low profile (6.6" x 2.536") |
|
|
Host Bus Type |
x8 lane PCI Express® 2.0 |
|
|
Cache Memory |
1GB 1333MHz DDRIII SDRAM |
|
|
External Ports |
8 |
|
|
Data Transfer Rates |
Up to 6Gb/s per port |
|
|
Devices Supported |
Up to 240 SATA and/or SAS devices |
|
|
External Connectors |
2 Mini-SAS SFF8088 |
|
|
MTBF |
808,712 hours |
|
|
Operating Temperature |
Maximum ambient: Controller Card: 60°C (with optional LSIiBBU09: 55°C) |
|
|
Operating Systems |
Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems: lsi.com/support |
|
|
Operating Voltage |
+3.3V |
|
|
Regulatory Certifications |
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick |
|

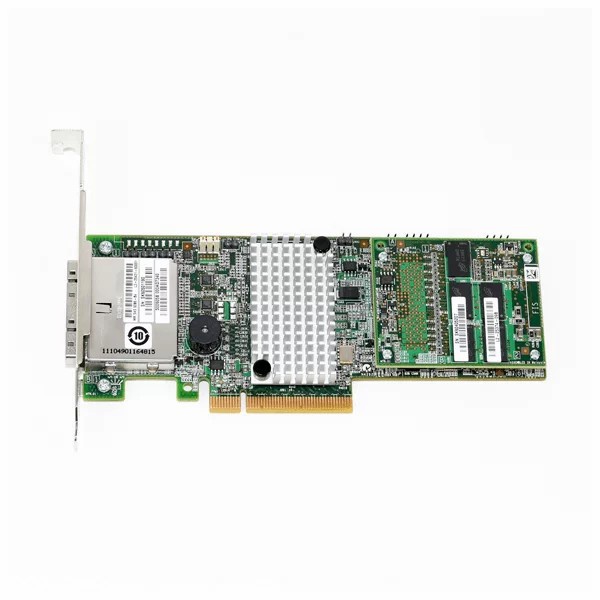

LSI MegaRAID SAS 9286-8e RAID Controller
