Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
For large scale-out architectures in enterprise and datacenters, the MegaRAID® SAS 9286CV-8eCC reduces hardware management and total cost of ownership (TCO) with CacheVault® flash cache protection. Leverage connected solid state drives (SSDs) to accelerate hard drive array throughput via CacheCade® Pro Pro 2.0 software.
- Connect up to 240 SATA or SAS drives with eight external 6 Gb/s SATA and SAS ports
- Connect up to 32 solid state drives as front-end flash cache to accelerate performance of hard drive arrays
- Support scale-out architectures with low-profile form factor and the bandwidth of PCIe® 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Protect critical data and lower TCO with CacheVault write-back flash cache protection
|
Product |
Ordering Part # |
What's in the box |
|
MegaRAID SAS 9286CV-8eCC |
LSI00335 |
MR SAS 9286CV‐8eCC (includes RAID controller with CacheCade Pro 2.0 and Fast Path software enabled, CacheVault flash module, CacheVault power module, CacheVault clip and remote cable), QIG, LP bracket |
|
Specifications |
Value |
|
|
RAID-on-Chip Controller |
LSISAS2208 Dual-Core RAID on Chip (ROC) |
|
|
Cache Protection |
MegaRAID® CacheVault flash cache protection (included) |
|
|
RAID Management Software |
MegaRAID Management Suite™ |
|
|
Physical Dimensions |
MD2 Low profile (6.6" x 2.536") |
|
|
Host Bus Type |
x8 lane PCI Express® 2.0 |
|
|
Cache Memory |
1GB 1333MHz DDRIII SDRAM |
|
|
External Ports |
8 |
|
|
Data Transfer Rates |
Up to 6Gb/s per port |
|
|
Devices Supported |
Up to 240 SATA and/or SAS devices |
|
|
External Connectors |
2 Mini-SAS SFF8088 |
|
|
MTBF |
1,251,284 hours |
|
|
Operating Temperature |
Maximum ambient: Controller Card: 60°C, with included CacheVault Module: 55°C |
|
|
Operating Systems |
Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems: lsi.com/support |
|
|
Operating Voltage |
+3.3V |
|
|
Regulatory Certifications |
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick |
|

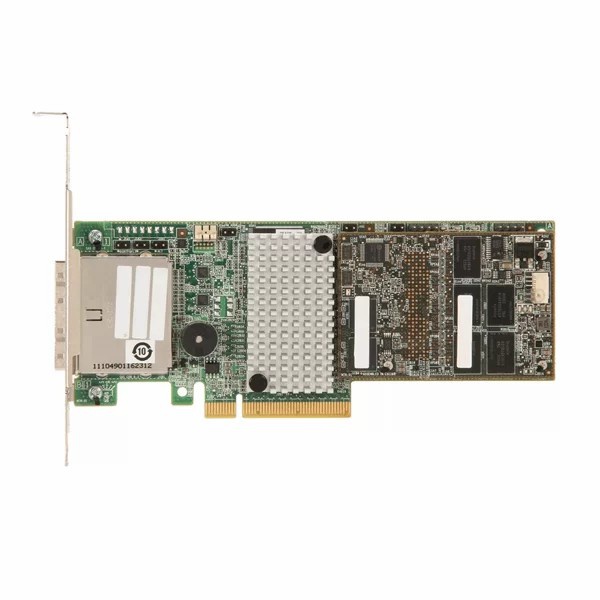

LSI MegaRAID SAS 9286CV-8eCC RAID Controller
