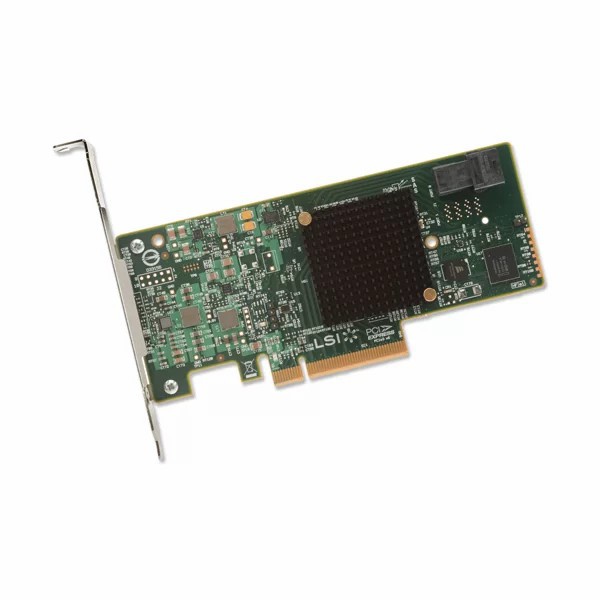

LSI MegaRAID SAS 9341-4i RAID Controller

Đánh giá:

(Chưa có đánh giá)

Thương hiệu:

LSI

Part Number:

Giá bán:

Liên hệ
Giá tham khảo, giá hiện tại có thể thay đổi, xin vui lòng liên hệ 09.4554.6338 để biết giá chính xác nhất!!..

LSI MegaRAID SAS 9341-8i Mini-SAS HD, PCI-Express card. Raid 0, 1, 5, 10, 50 and JBOD

Liên hệ nhận báo giá

So sánh

Mô tả sản phẩm Thông số kỹ thuật

LSI MegaRaid SAS 9341-8i Features

High performance with 12Gb/s data transfer rates
PCI Express® 3.0 host interface drives superior system performance
Delivers robust, yet simple RAID functionality
Flexible SATA+SAS array architecture optimizes cost
Complete kit package includes necessary cables and brackets
Includes JBOD Mode support Applications
Internal storage configurations
1U/2U rack servers
File, Web, database and email servers
High-performance workstations
Eight internal 12Gb/s SATA+SAS ports
x8 PCI Express 3.0 host interface
Two x4 SFF-8643 mini-SAS HD internal connectors
LSISAS3008 PowerPC 476 controller & 1.2 GHz
RAID 0, 1, 5, 10, 50 and JBOD mode
Low-profile form factor
Supports up to 64 devices in JBOD mode
Up to 32 physical devices in RAID mode
Powerful device monitoring and maintenance capabilities

Specifications

Solution
Provided

Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives.

Physical Dimensions

9341-8i & 9341-4i: 2.6" x 6.0"

Connectors

9341-8i: Two, x4, SFF-8643 mini-SAS HD horizontal connector placement
9341-4i: One, x4, SFF-8643 mini-SAS HD horizontal connector placement

Max number of physical devices

Non-RAID (JBOD Mode): 64		RAID 5: 32 per volume
RAID 0: 32 per volume		RAID 10: 32 per volume
RAID 1: 2 per volume plus hot spare		RAID 50: 32 per volume

Host Bus Type

8-lane, 5 GT/s PCI Express 3.0 Compliant

Data Transfer Rates

Up to 12Gb/s per port

Key RAID Data Protection Features

RAID levels 0, 1, 5, 10, 50 and JBOD mode
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or RLM
Single controller multipathing (Load balancing)
Drive hot plug support
Drive roaming
Selectable logical drive as boot drive
Virtual Disk (VD) Consistency Check
Fast initialization for quick array setup
Staggered disk spin up
Hot Spare support (up to 8)-Global, dedicated (copy back), enclosure affinity and emergency SATA support
Automatic rebuild support

SafeStore Encryption Services for SED HDDs
Shield State drive diagnostic technology
Patrol Read media scan and repair
Online HDD firmware update
Error recovery support
SAS TCQ support
SATA NCQ support
Support for native 4K HDDs
Non disk device support
>2TB logical drive support
Soft bad block management
DDF-compliant Configuration on Disk
Foreign Configuration Import
S.M.A.R.T. support
SES (inband) & SGPIO (sideband) management

MegaRAID Management Suite

MegaRAID Storage Manager ™
- With single login for domain admin
StorCLI (command-line interface)

CTRL-R (BIOS configuration utility)
HII (UEFI Human Interface Infrastructure)

Environments

Operating		Storage
0°C to 70°C		-45°C to 105°C
5 to 90% Non-condensing		5 to 90% Non-condensing

PCI Card Type

3.3V add-in Card

PCI Voltage

+12V +/-8%

PCI Power

13.0 W (normal), 19.04 W (max)

PCI Modes

Bus Master DMA

LED Indicators

Internal
Activity/Fault per x4 port – Heartbeat

MTFB

>2,800,000 hours

Compliances

EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950

Regulatory Certifications

EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick

OS Support

Extensive support includes Microsoft® Windows® Server 2012/Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
Visit the LSI download center for the most complete list of supported operating systems: http://www.lsi.com/support

Brackets

Full Height and Low-Profile
