RAID 0/1/5/10/50 JBOD
2 x mini-SAS SFF8643 internal connector (Horizontal mount) Internal Connectors
Up to 12Gb/s

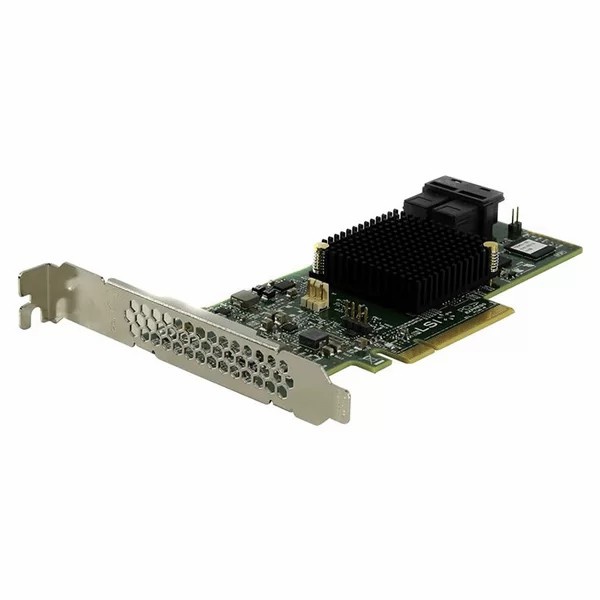

Card LSI MegaRAID SAS 9341-8i
Email, file, SharePoint, and similar critical apps must scale easily over time while remaining both highly protected and easily manageable. That’s where the MegaRAID® SAS 9341-8i 12Gb/s SAS and SATA RAID controller card can add real value. Designed for small and medium businesses (SMBs) with tower and rack-mounted and servers, it provides the headroom required for future growth at an affordable price point.
– Connect up to 64 SATA or SAS drives in non-RAID (JBOD) mode or 32 drives in RAID mode with four internal 12Gb/s SATA and SAS ports
– Support high-bandwidth applications with PCIe® 3.0 connectivity
– Fit into 1U/2U rack-mounted servers and compact servers with low-profile form factor
– Balance protection and performance for critical applications with RAID levels 0, 1, 5, 10 and 50
|
Product |
Ordering Part # |
What’s in the box |
|
MegaRAID SAS 9341-8i |
LSI00407 |
MegaRAID SAS 9341-8i, QIG, LP bracket |
|
Specifications |
Value |
|
|
RAID-on-Chip Controller |
LSISAS3008 PowerPC 476 controller @ 1.2 GHz |
|
|
RAID Management Software |
MegaRAID Storage Manager |
|
|
Cache Protection |
– |
|
|
Physical Dimensions |
6.6″ x 2.536″ (Low-Profile) |
|
|
Host Bus Type |
x8 lane PCI Express® 3.0 |
|
|
Cache Memory |
– |
|
|
Internal Ports |
8 |
|
|
Data Transfer Rates |
Up to 12Gb/s per port |
|
|
Devices Supported |
Non-RAID (JBOD Mode): 64 |
|
|
Internal Connectors |
2 HD Mini-SAS SFF8643 (Horizontal mount) |
|
|
MTBF |
>2,800,000 hours |
|
|
Operating Temperature |
0°C to 70°C |
|
|
Operating Voltage |
+12V |
|
|
Operating Systems |
Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems: lsi.com/support |
|
|
Regulatory Certifications |
EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950 |
|
LSI MegaRAID SAS 9341-8i
