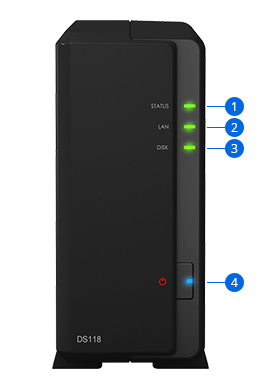

Mặt trước Nas Synology DS118

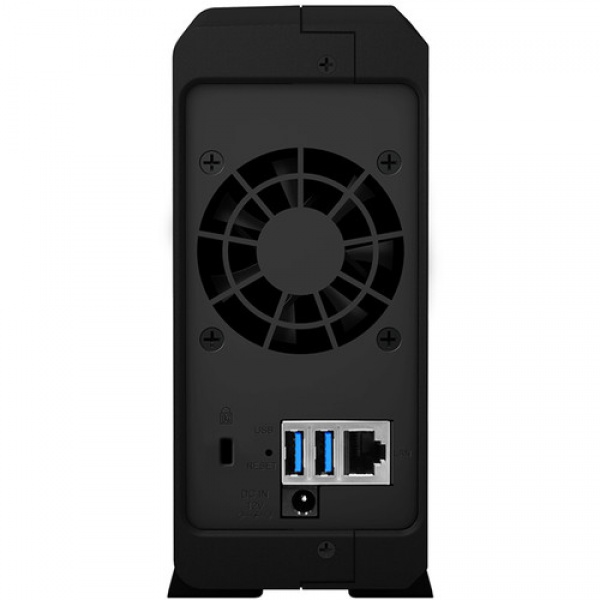

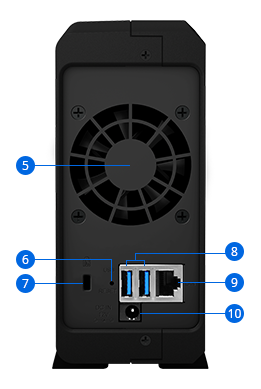

Mặt sau Nas Synology DS118

1. Đèn báo trạng thái

6. Nút reset

2. Đèn báo mạng LAN

7. Khe bảo mật Kensington

3. Đèn báo trạng thái ổ đĩa

8. Cổng USB 3.0

4. Nút nguồn và đèn báo

9. Network 1GbE RJ-45

5. Quạt hệ thống

10. Nguồn điện

Hardware Specifications

CPU

CPU Model

Realtek RTD1296

CPU Architecture

64-bit

CPU Frequency

4-core 1.4 GHz

Hardware Encryption Engine

Hardware Transcoding Engine

10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60

Memory

System Memory

1 GB DDR4 non-ECC

Notes

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

1

Compatible Drive Type*

• 3.5″ SATA HDD
• 2.5″ SATA HDD (with optional 2.5″ Disk Holder)
• 2.5″ SATA SSD (with optional 2.5″ Disk Holder)

Maximum Internal Raw Capacity

16 TB (16 TB drive x 1) (Capacity may vary by RAID types)

Maximum Single Volume Size*

108 TB

Hot Swappable Drive

–

Notes

• “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• The maximum single volume size is not directly related to the maximum raw capacity.

External Ports

RJ-45 1GbE LAN Port

1

USB 3.0 Port

2

File System

Internal Drives

• EXT4

External Drives

• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*

Notes

exFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth)

166 mm x 71 mm x 224 mm

Weight

0.7 kg

Others

System Fan

60 mm x 60 mm x 1 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode
• Low-power Mode

Brightness Adjustable Front LED Indicators

Power Recovery

Noise Level*

16.7 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter

36 W

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

9.4 W (Access) 4.22 W (HDD Hibernation)

British Thermal Unit

32.1 BTU/hr (Access) 14.41 BTU/hr (HDD Hibernation)

Notes

• Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

5°C to 40°C (40°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

• EAC
• CCC
• RCM
• KC
• FCC
• CE
• BSMI

Warranty

2 Years

Notes

The warranty period starts from the purchase date as stated on your purchase receipt.
