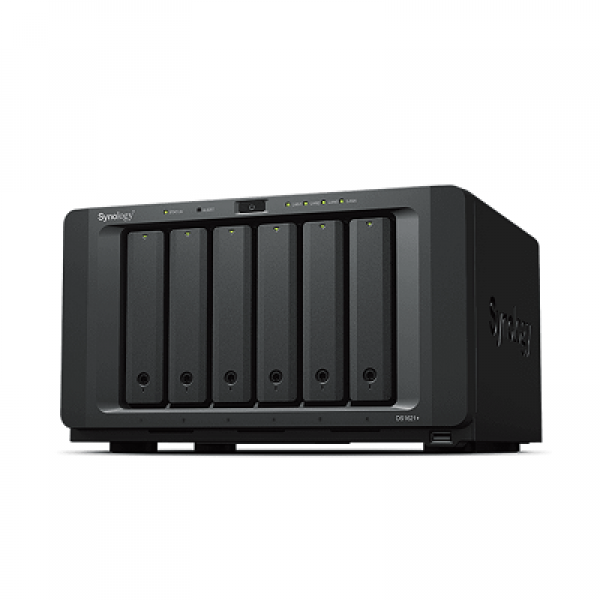

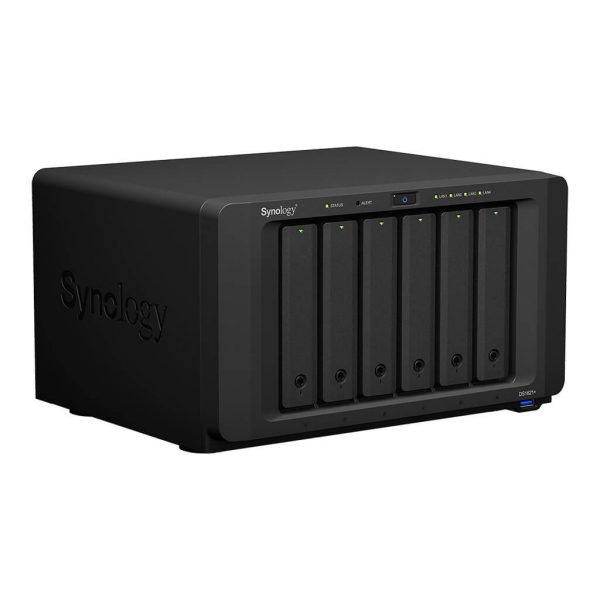

Mặt trước NAS Synology DS1621+

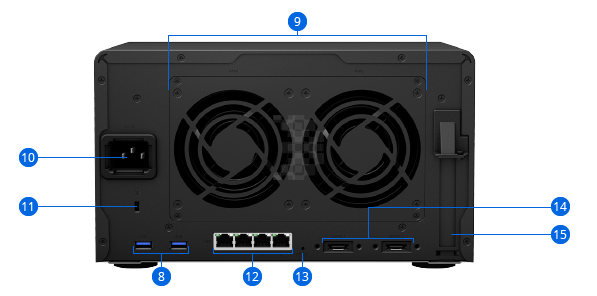

Mặt sau NAS Synology DS1621+

1. Trạng thái đèn báo

9. hệ thống quạt

2. Warning

10. Nguồn điện

3. Nguồn nút và đèn báo

11. Kensington bảo mật

4. LAN mạng báo cáo

12. Network port 1GbE RJ-45

5. Ổ cứng trạng thái đèn

13. Đặt lại nút

6. Khay ổ cứng

14. Mở rộng cổng

7. Ổ cứng ổ cứng

15. PCIe wide socket

8. Cổng USB 3.2 Thế hệ 1

Phần cứng kỹ thuật số DS1621 +

CPU

CPU Model

AMD Ryzen V1500B

CPU Architecture

64-bit

CPU Frequency

4-core 2.2 GHz

Hardware Encryption Engine (AES-NI)

Memory

System Memory

4 GB DDR4 ECC SODIMM

Memory Module Pre-installed

4 GB (4 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

6

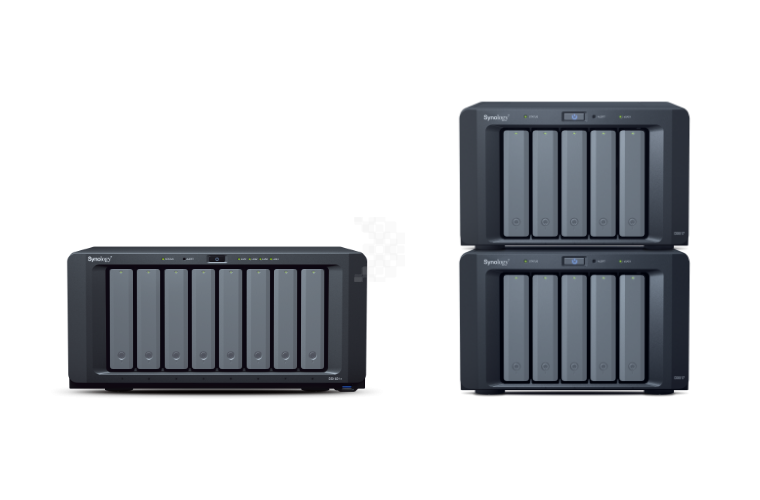

Maximum Drive Bays with Expansion Unit

16 (DX517 x 2)

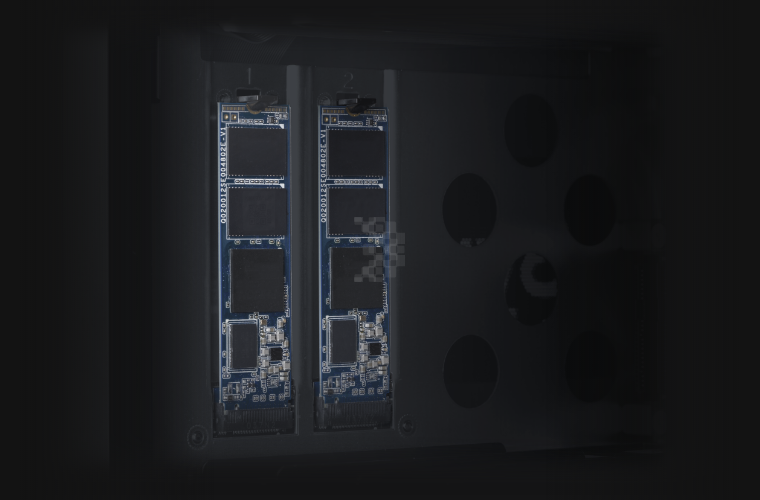

M.2 Drive Slots

2 (NVMe)

Compatible Drive Type* (See all supported drives)

• 3.5″ SATA HDD
• 2.5″ SATA HDD
• 2.5″ SATA SSD
• M.2 2280 NVMe SSD

Maximum Single Volume Size*

108 TB

Hot Swappable Drive

Notes

• “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports

RJ-45 1GbE LAN Port

4 (with Link Aggregation / Failover support)

USB 3.0 Port

3

eSATA Port

2

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

File System

Internal Drives

• Btrfs
• EXT4

External Drives

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*

Notes

exFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth)

166 mm x 282 mm x 243 mm

Weight

5.1 kg

Others

System Fan

92 mm x 92 mm x 2 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan

Brightness Adjustable Front LED Indicators

Power Recovery

Noise Level*

25.2 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter

250 W

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

51.22 W (Access)
25.27 W (HDD Hibernation)

British Thermal Unit

174.77 BTU/hr (Access)
86.22 BTU/hr (HDD Hibernation)

Notes

• Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

• FCC
• CE
• BSMI
• EAC
• CCC
• KC
• VCCI
• RCM

Warranty

3-year hardware warranty, extendable to 5-year coverage – EW201

Notes

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

RoHS Compliant

Packaging Content

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 1
• RJ-45 LAN Cable X 2
• Quick Installation Guide X 1

Optional Accessories

• DDR4 ECC SODIMM: D4ES01-4G/D4ES01-8G/D4ECSO-2666-16G
• Expansion Units: DX517
• 2.5″ SATA SSD: SAT5200
• M.2 2280 NVMe SSD: SNV3400

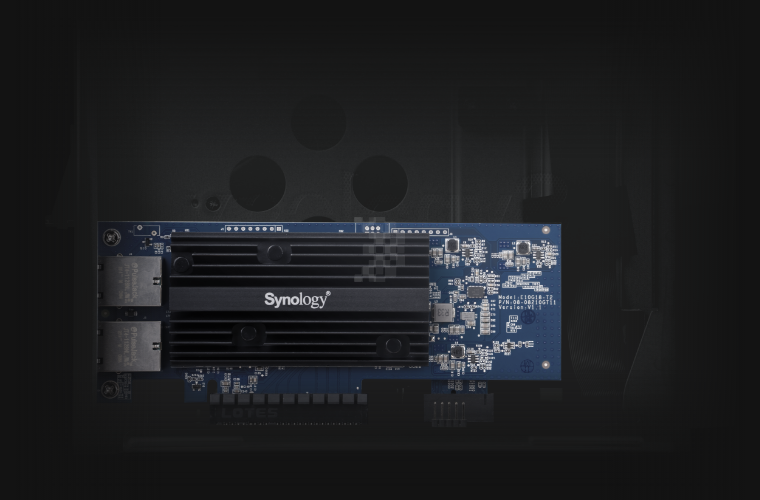

• 10GbE Network Interface Card: E10G18-T2/E10G18-T1/E10G17-F2
• VisualStation: VS960HD/VS360HD
• Surveillance Device License Pack
