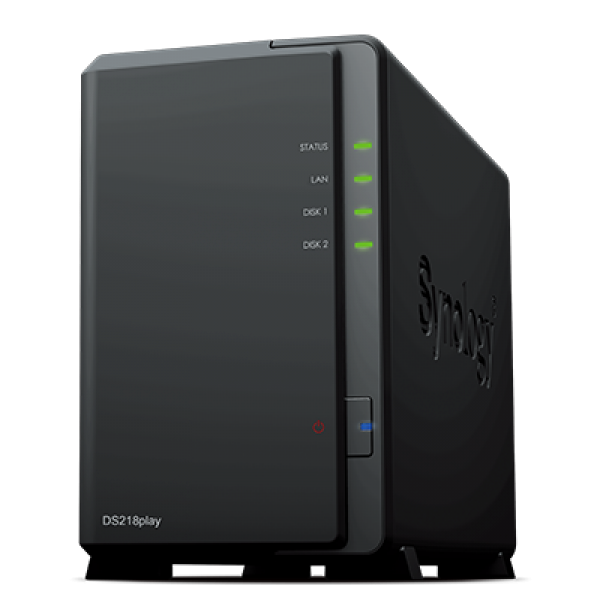

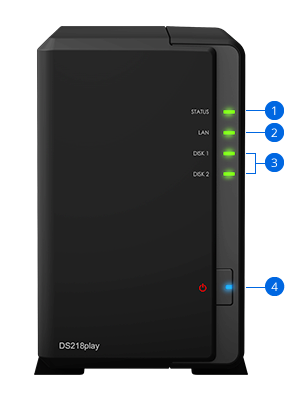

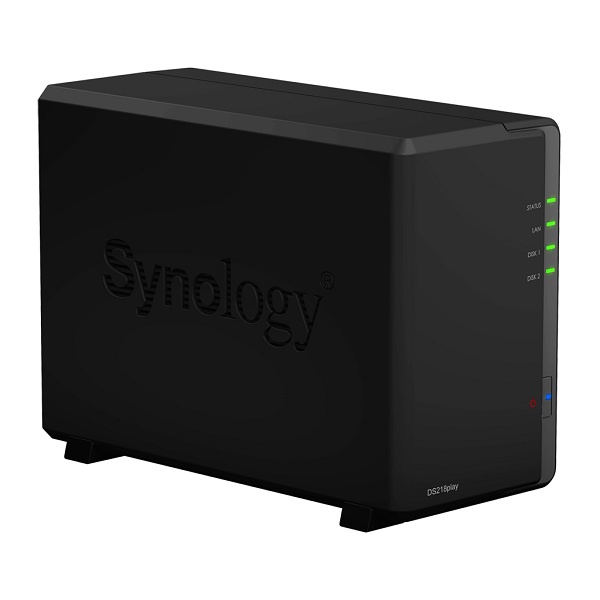

Mặt trước NAS Synology DS218play

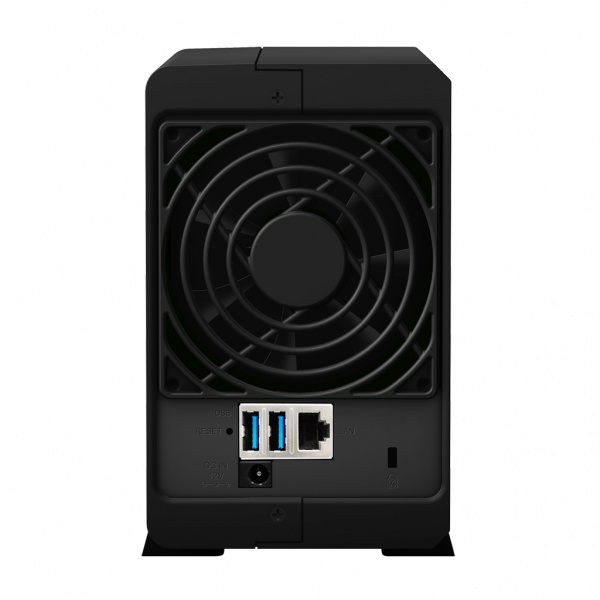

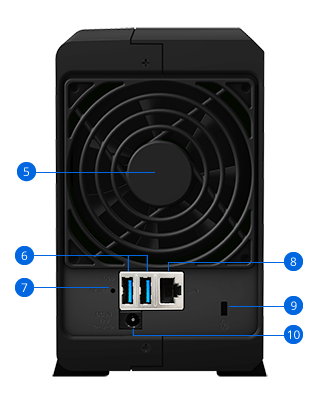

Mặt sau NAS Synology DS218play

 1. Đèn báo trạng thái

6. Cổng USB 3.0

2. Đèn báo mạng LAN

7. Nút reset

3. Đèn báo trạng thái ổ cứng

8. Network port RJ-45 1GbE

4. Nút nguồn và đèn báo

9. Khe bảo mật Kensington

5. Quạt hệ thống

10. Nguồn điện

Hardware Specifications DS218PLAY

CPU

CPU Model

Realtek RTD1296

CPU Architecture

64-bit

CPU Frequency

Quad Core 1.4 GHz

Hardware Encryption Engine

x

Hardware Transcoding Engine

10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60

Memory

System Memory

1 GB DDR4

Notes

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

2

Compatible Drive Type* (See all supported drives)

• 3.5″ SATA HDD
• 2.5″ SATA HDD (with optional 2.5″ Disk Holder)
• 2.5″ SATA SSD (with optional 2.5″ Disk Holder)

Maximum Internal Raw Capacity

32 TB (16 TB drive x 2) (Capacity may vary by RAID types)

Maximum Single Volume Size

108 TB

Hot Swappable Drive

x

Notes

• “Compatible drive type” indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• The maximum single volume size is not directly related to the maximum raw capacity. (Learn more)

External Ports

RJ-45 1GbE LAN Port

1

USB 3.0 Port

2

File System

Internal Drives

• EXT4

External Drives

• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*

Notes

exFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth)

165 mm x 100 mm x 225.5 mm

Weight

0.87 kg

Others

System Fan

92 mm x 92 mm x 1 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Brightness adjustable front LED indicators

x

Power Recovery

x

Noise Level*

19.9 dB(A)

Scheduled Power On/Off

x

Wake on LAN/WAN

x

Power Supply Unit / Adapter

60W

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60Hz, Single Phase

Power Consumption*

16.79 W (Access) 5.16 W (HDD Hibernation)

British Thermal Unit

57.29 BTU/hr (Access) 17.61 BTU/hr (HDD Hibernation)

Temperature

Operating Temperature

5°C to 40°C (40°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

• EAC
• CCC
• RCM
• KC
• FCC
• CE
• BSMI

Warranty

2 Years

Notes

• The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
