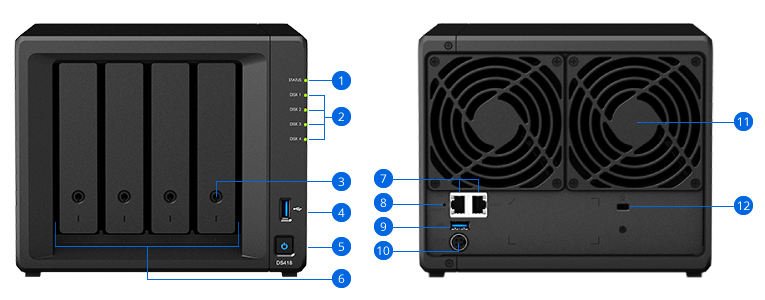

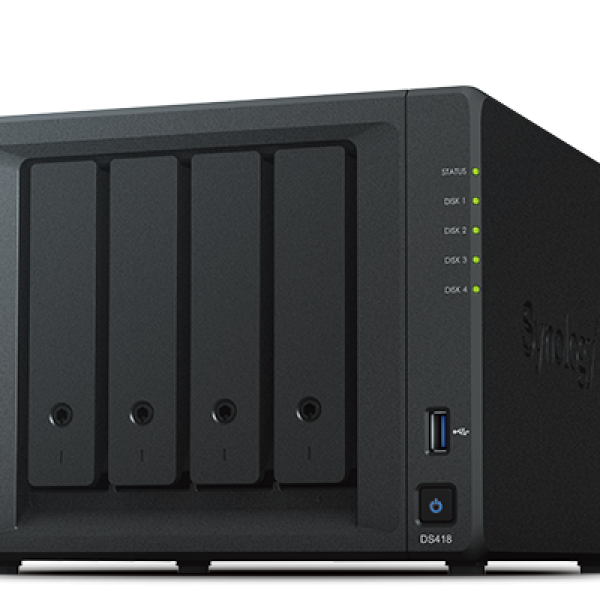

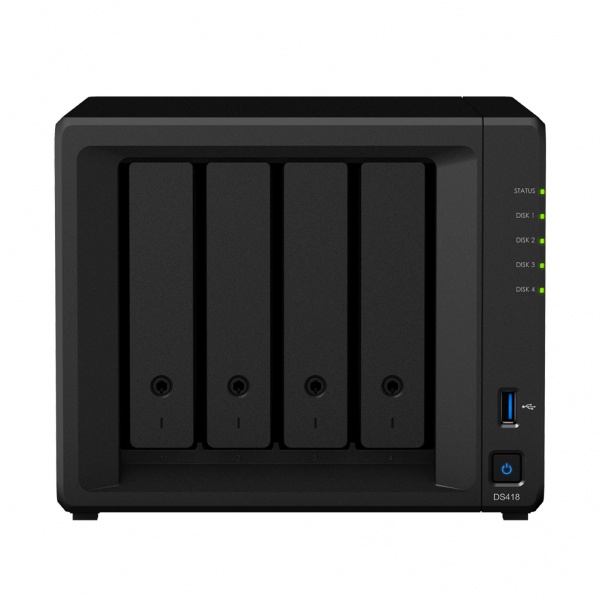

Mặt trước NAS Synology DS418

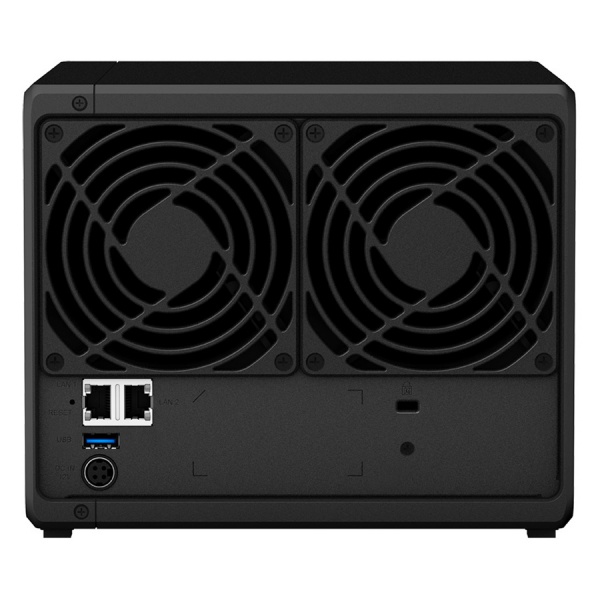

Mặt sau NAS Synology DS418

1. Đèn báo trạng thái

7. Cổng mạng RJ-45 1GB

2. Đèn báo trạng thái ổ đĩa

8. Nút reset

3. Ổ khóa khay

9. Cổng USB 3.0

4. Cổng USB 3.0

10. Nguồn điện vào

5. Nút nguồn và đèn báo

11. Quạt

6. Khay ổ đĩa

12. Khe bảo mật Kensington

Hardware Specifications

CPU

CPU Model

Realtek RTD1296

CPU Architecture

64-bit

CPU Frequency

Quad Core 1.4 GHz

Hardware Encryption Engine

x

Hardware Transcoding Engine

10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60

Memory

System Memory

2 GB DDR4

Notes

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

4

Compatible Drive Type* (See all supported drives)

• 3.5″ SATA HDD
• 2.5″ SATA HDD
• 2.5″ SATA SSD

Maximum Internal Raw Capacity

56 TB (14 TB drive x 4) (Capacity may vary by RAID types)

Maximum Single Volume Size

108 TB

Hot Swappable Drive

x

Notes

• “Compatible drive type” indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• The maximum single volume size is not directly related to the maximum raw capacity. (Learn more)

External Ports

RJ-45 1GbE LAN Port

2 (with Link Aggregation / Failover support)

USB 3.0 Port

2

File System

Internal Drives

• Btrfs
• EXT4

External Drives

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*

Notes

exFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth)

166 mm x 199 mm x 223 mm

Weight

2.28 kg

Others

System Fan

92 mm x 92 mm x 2 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Brightness adjustable front LED indicators

x

Power Recovery

Noise Level*

20.9 dB(A)

Scheduled Power On/Off

x

Wake on LAN/WAN

x

Power Supply Unit / Adapter

90W

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60Hz, Single Phase

Power Consumption*

26.49 W (Access) 8.78 W (HDD Hibernation)

British Thermal Unit

90.39 BTU/hr (Access) 29.96 BTU/hr (HDD Hibernation)

Temperature

Operating Temperature

5°C to 40°C (40°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

• EAC
• CCC
• RCM
• KC
• FCC
• CE
• BSMI

Warranty

2 Years

Notes

• The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
• Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
