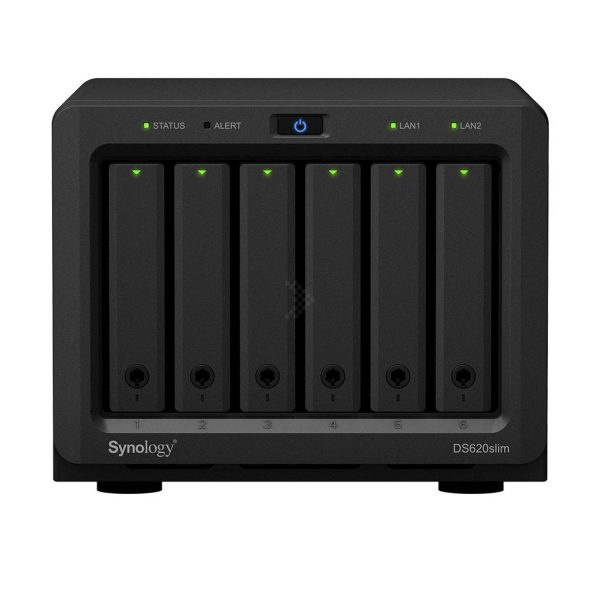

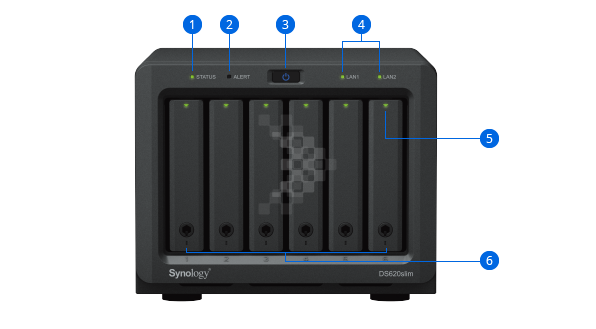

Mặt trước NAS Synology DS620slim

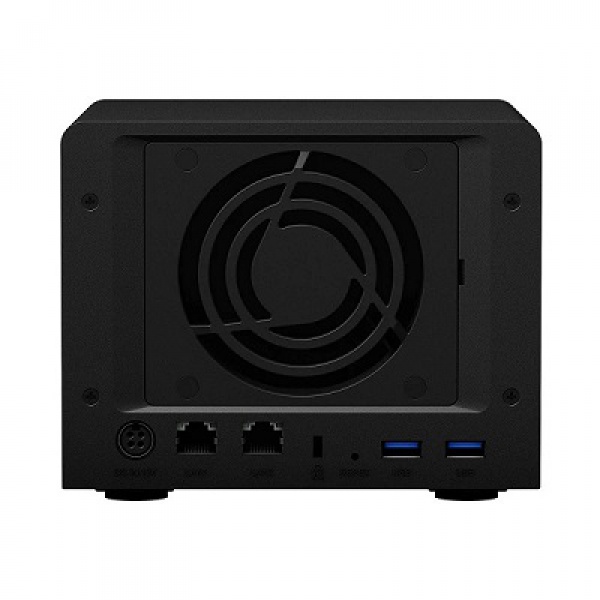

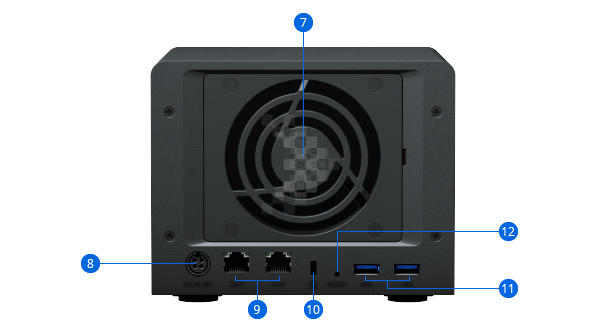

Mặt sau NAS Synology DS620slim

1. Đèn báo trạng thái

7. Quạt hệ thống

2. Đèn báo cảnh báo

8. Nguồn điện

3. Nút nguồn và đèn báo

9. Cổng mạng 1GbE RJ-45

4. Đèn báo mạng LAN

10. Khe bảo mật Kensington

5. Đèn báo trạng thái ổ cứng

11. Cổng USB 3.0

6. Khay ổ cứng

12. Nút reset

Hardware Specifications DS620Slim

CPU

CPU Model

Intel Celeron J3355

CPU Architecture

64-bit

CPU Frequency

2-core 2.0 (base) / 2.5 (burst) GHz

Hardware Encryption Engine (AES-NI)

Hardware Transcoding Engine

H.264 (AVC), H.265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30

Memory

System Memory

2 GB DDR3L non-ECC SO-DIMM

Memory Module Pre-installed

2 GB (2 GB x 1)

Total Memory Slots

2

Memory Expandable up to

6 GB (2 GB + 4 GB)

Notes

• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

6

Compatible Drive Type*

• 2.5″ SATA HDD
• 2.5″ SATA SSD

Maximum Internal Raw Capacity

46.08 TB (7.68 TB drive x 6) (Capacity may vary by RAID types)

Maximum Single Volume Size*

108 TB

Hot Swappable Drive

Notes

• “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• The maximum single volume size is not directly related to the maximum raw capacity.
• Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports

RJ-45 1GbE LAN Port

2 (with Link Aggregation / Failover support)

USB 3.0 Port

2

File System

Internal Drives

• Btrfs
• EXT4

External Drives

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*

Notes

exFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth)

121 mm x 151 mm x 175 mm

Weight

1.4 kg

Others

System Fan

80 mm x 80 mm x 1 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan

Brightness Adjustable Front LED Indicators

Power Recovery

Noise Level*

20.5 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter

65 W

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

34.88 W (Access) 7.59 W (HDD Hibernation)

British Thermal Unit

119.1 BTU/hr (Access) 25.92 BTU/hr (HDD Hibernation)

Notes

• Power consumption is measured when it is fully loaded with Western Digital 1TB WD10JFCX hard drive(s).
• Noise Level Testing Environment: Fully loaded with WD 1TB WD10JFCX hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 17.2 dB(A); Temperature: 23.6˚C; Humidity: 58.2%.

Temperature

Operating Temperature

5°C to 40°C (40°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

• EAC
• VCCI
• RCM
• FCC
• CE
• BSMI

Warranty

2 Years

Notes

The warranty period starts from the purchase date as stated on your purchase receipt.
