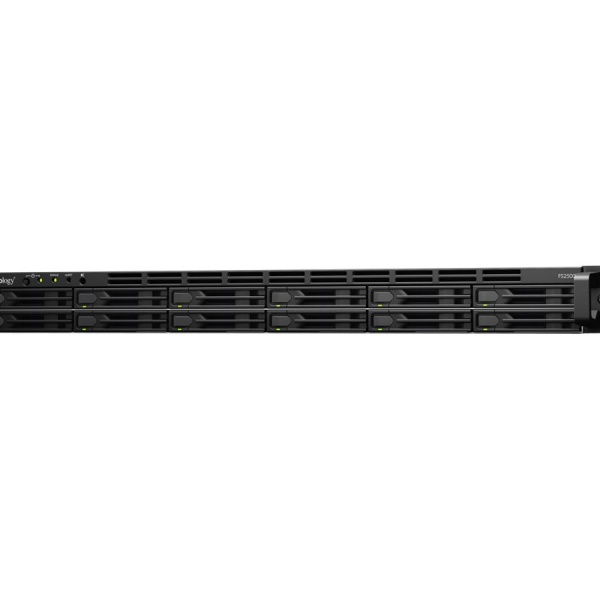

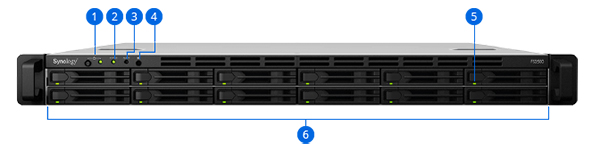

Mặt trước NAS Synology FS2500

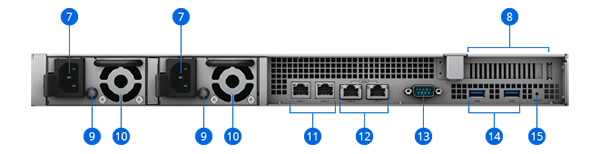

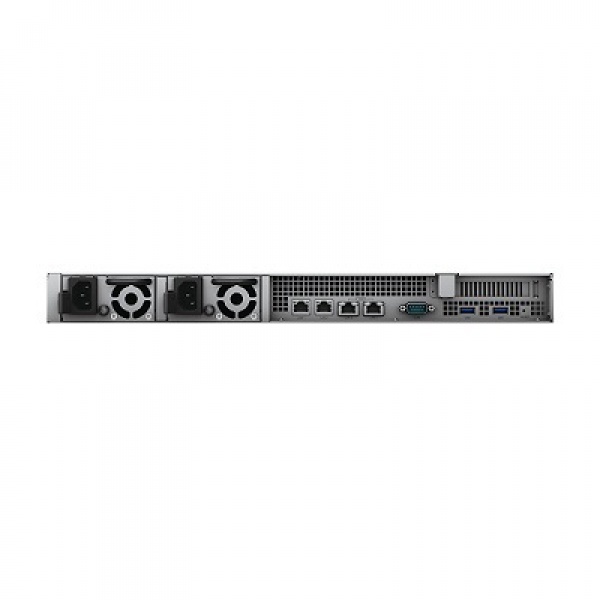

Mặt sau NAS Synology FS2500

1. Nút nguồn và đèn báo

10. Quạt PSU

2. Đèn trạng thái

11. Cổng RJ-45 1GbE

3. Đèn cảnh báo

12. Cổng RJ-45 10GbE

4. Nút tắt tiếng bíp

13. Cổng điều khiển

5. Đèn trạng thái ổ đĩa

14. Cổng USB 3.2 Gen 1

6. Khay ổ đĩa

15. Nút khởi động lại

7. Cổng nguồn

8. Khe mở rộng PCI Express

9. Đèn PSU và Nút tắt tiếng bíp

CPU

CPU Model

AMD Ryzen V1780B

CPU Quantity

1

CPU Architecture

64-bit

CPU Frequency

4-core 3.35 (base) / 3.6 (turbo) GHz

Hardware Encryption Engine (AES-NI)

MEMORY

System Memory

8 GB DDR4 ECC UDIMM

Memory Module Pre-installed

8 GB (8 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• For more information on the recommended memory configurations, visit here.
• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

STORAGE

Drive Bays

12

Compatible Drive Type

2.5″ SATA SSD

Maximum Single Volume Size*

• 200 TB (32 GB memory required)
• 108 TB

Hot Swappable Drive

Notes

• It is strongly recommended that you only install drives listed on your device’s compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
• “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).

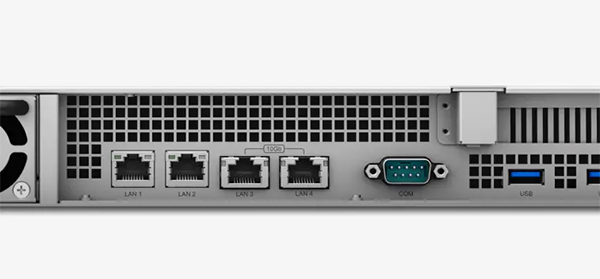

EXTERNAL PORTS

RJ-45 1GbE LAN Port*

2 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port

2 (with Link Aggregation / Failover support)

USB 3.2 Gen 1 Port*

2

Notes

• This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

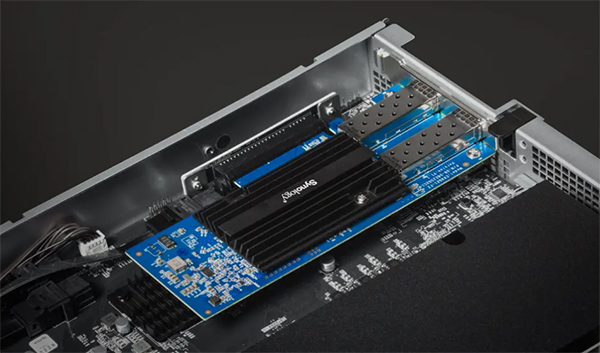

PCIE

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

FILE SYSTEM

Internal Drives

• Btrfs
• EXT4

External Drives

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT

Notes

exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

APPEARANCE

Form Factor (RU)

1U

Size (Height x Width x Depth)

44 mm x 481.9 mm x 555.9 mm

Weight

8.3 kg

Rack Installation Support*

4-post 19″ rack (Synology Rail Kit – RKS-01)

Notes

The rail kit is sold separately

OTHERS

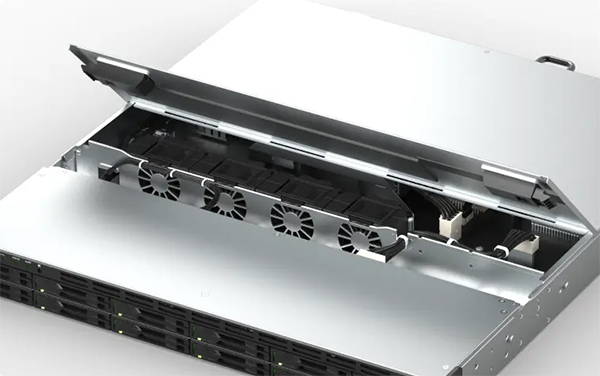

System Fan

40 mm x 40 mm x 4 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan

Power Recovery

Noise Level*

57.6 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

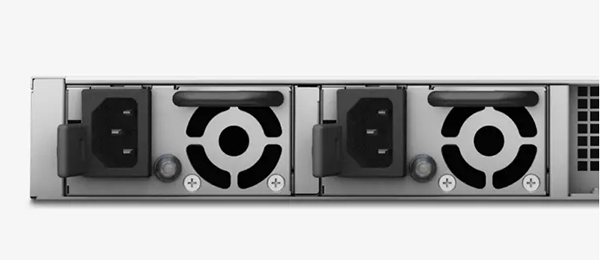

Power Supply Unit / Adapter

350 W

Redundant Power Supply

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

74.83 W (Access)

British Thermal Unit

255.17 BTU/hr (Access)

Notes

• The power consumption of the NAS model is measured when it is fully loaded with Synology SAT5200-3840G solid-state drives.
• Noise Level Testing Environment: A Synology NAS loaded with Synology 480GB SAT5200-480G solid-state drive(s) in idle state. Each G.R.A.S. type 40AE microphone is placed at a 1-meter distance from the front and rear of a Synology NAS. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

TEMPERATURE

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

CERTIFICATION

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
• EAC
• KC
• UL

WARRANTY

5 Years

Notes

The warranty period starts from the purchase date as stated on your purchase receipt.

ENVIRONMENT

RoHS Compliant

PACKAGING CONTENT

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 2
• Quick Installation Guide X 1

OPTIONAL ACCESSORIES

• DDR4 ECC UDIMM: D4EU01-8G/D4EU01-16G
• 2.5″ SATA SSD: SAT5210
• 25GbE Network Interface Card: E25G21-F2
• 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
• Rail Kit Sliding: RKS-01
• VisualStation: VS360HD
• Surveillance Device License Pack

Notes

All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
