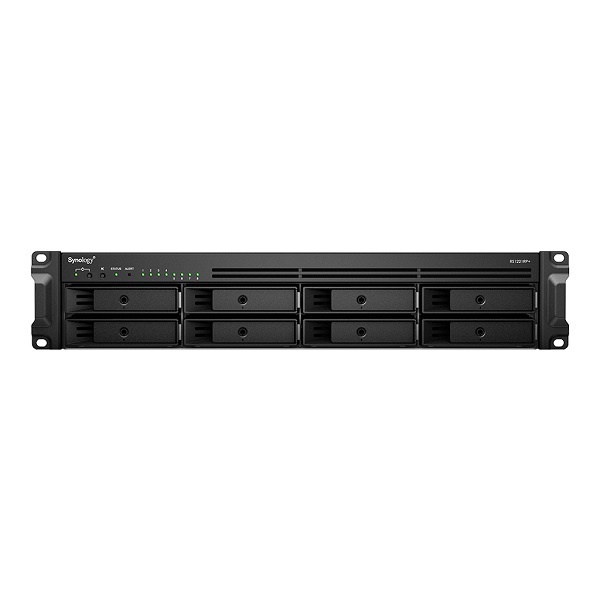

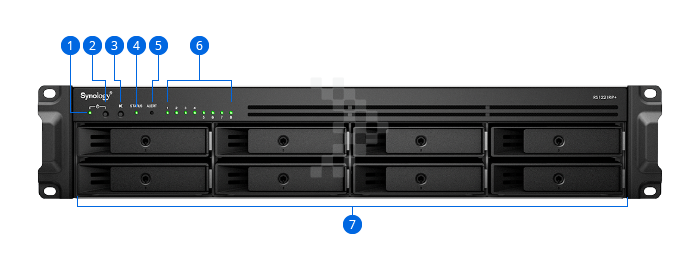

Mặt trước Nas Synology RS1221+

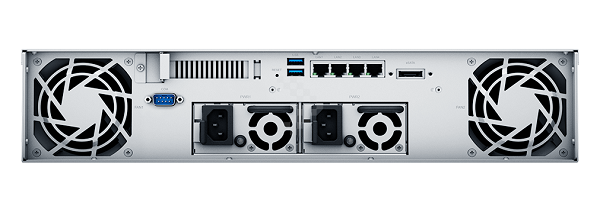

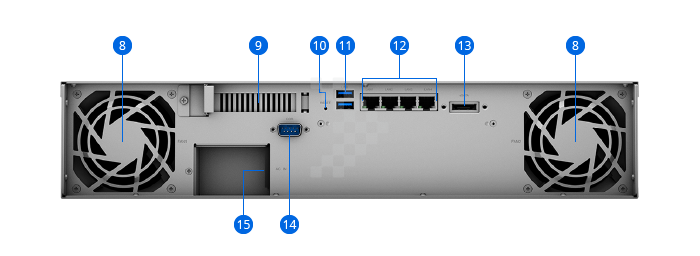

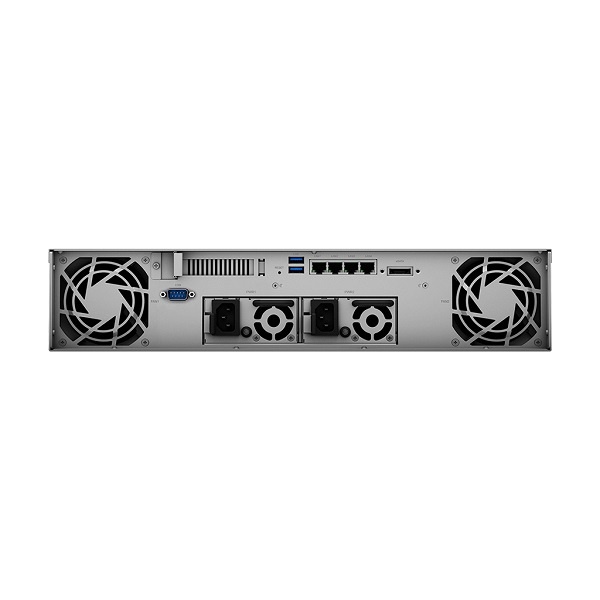

Mặt sau Nas Synology RS1221+

1. Đèn báo nguồn

9. Khe cắm mở rộng PCIe

2. Nút nguồn

10. Nút reset

3. Nút tắt cảnh báo

11. Cổng USB 3.2 Gen 1

4. Đèn báo trạng thái

12. Network 1GbE RJ-45

5. Đèn báo cảnh báo

13. Cổng mở rộng

6. Đèn báo trạng thái ổ đĩa

14. Console port

7. Khay ổ đĩa

15. Nguồn điện

8. Quạt hệ thống

CPU

CPU Model

AMD Ryzen V1500B

CPU Architecture

64-bit

CPU Frequency

4-core 2.2 GHz

Hardware Encryption Engine (AES-NI)

Memory

System Memory

4 GB DDR4 ECC SODIMM

Memory Module Pre-installed

4 GB (4 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

8

Maximum Drive Bays with Expansion Unit

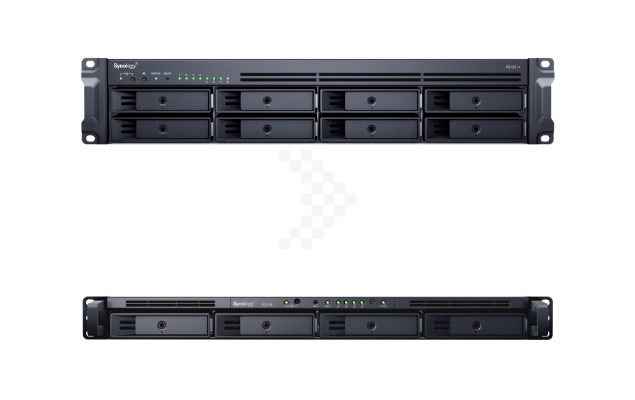

12 (RX418 x 1)

Compatible Drive Type* (See all supported drives)

• 3.5″ SATA HDD
• 2.5″ SATA HDD
• 2.5″ SATA SSD

Maximum Single Volume Size*

108 TB

Hot Swappable Drive

Notes

• “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports

RJ-45 1GbE LAN Port

4 (with Link Aggregation / Failover support)

USB 3.2 Gen 1 Port*

2

eSATA Port

1

Notes

The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

File System

Internal Drives

• Btrfs
• EXT4

External Drives

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*

Notes

exFAT Access is purchased separately in Package Center.

Appearance

Form Factor (RU)

2U

Size (Height x Width x Depth)

RS1221+ :88 mm x 482 mm x 306.6 mmRS1221RP+ :88 mm x 482 mm x 407.5 mm

Weight

RS1221+ :6.9 kgRS1221RP+ :11.7 kg

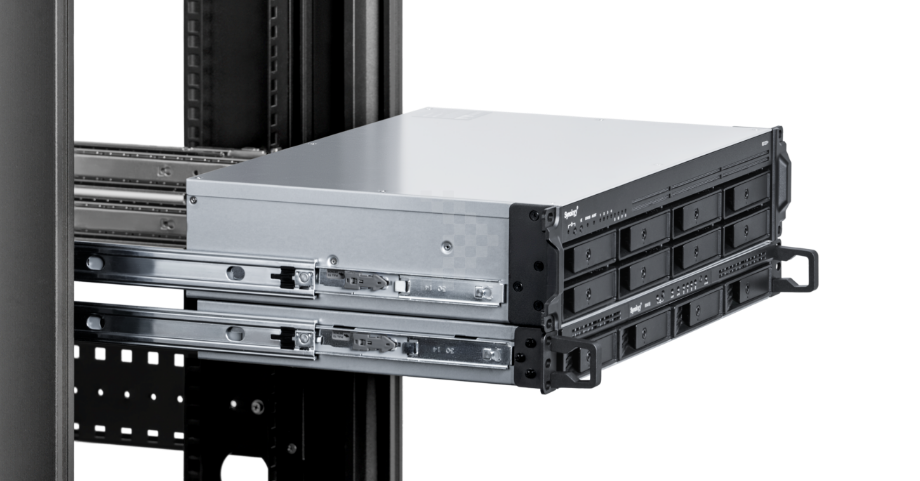

Rack Installation Support*

RS1221+ :

• 2-post 19″ rack (direct mounting)
• 4-post 19″ rack (Synology Rail Kit – RKM114/RKS1317)

RS1221RP+ :4-post 19″ rack (Synology Rail Kit – RKS1317)

Notes

The rail kit is sold separately

Others

System Fan

80 mm x 80 mm x 2 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Power Recovery

Noise Level*

RS1221+ :25.2 dB(A)RS1221RP+ :40 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter

RS1221+ :250 WRS1221RP+ :350 W

Redundant Power Supply

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

RS1221+ :49.89 W (Access) 22.64 W (HDD Hibernation)
RS1221RP+ :61.94 W (Access) 29.98 W (HDD Hibernation)

British Thermal Unit

RS1221+ :170.23 BTU/hr (Access) 77.25 BTU/hr (HDD Hibernation)
RS1221RP+ :211.35 BTU/hr (Access) 102.30 BTU/hr (HDD Hibernation)

Notes

• Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

• FCC
• CE
• BSMI
• EAC
• CCC
• KC
• VCCI
• RCM

Warranty

3-year hardware warranty, extendable to 5-year coverage – EW202

Notes

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

RoHS Compliant

Packaging Content

RS1221+ :

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 1
• C13 to C14 power cord x 1
• Quick Installation Guide X 1

RS1221RP+ :

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 2
• Quick Installation Guide X 1

Optional Accessories

RS1221+ :

• DDR4 ECC SODIMM: D4ES01-4G/D4ES01-8G/D4ECSO-2666-16G
• Expansion Units: RX418

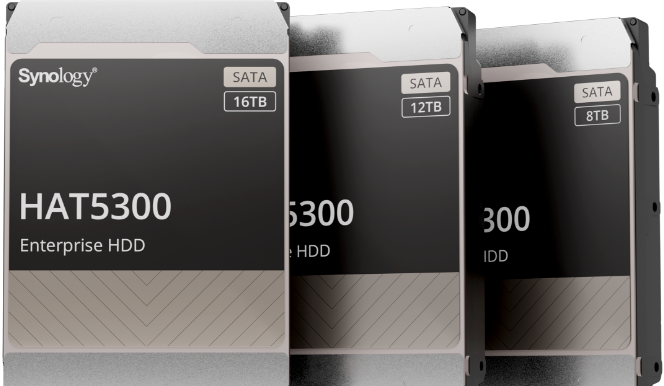

• 3.5″ SATA HDD: HAT5300
• 2.5″ SATA SSD: SAT5200

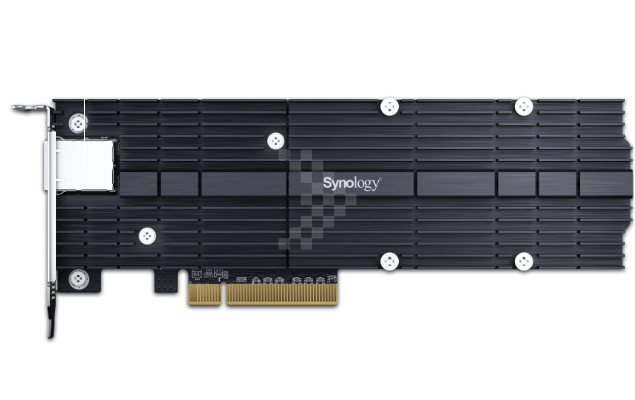

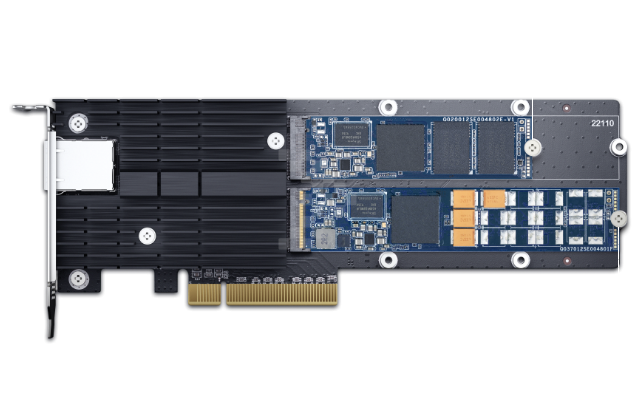

• M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
• M.2 SSD Adapter Card: M2D20
• 10GbE Network Interface Card: E10G18-T2/E10G18-T1/E10G17-F2
• Rail Kit Sliding: RKS1317
• Rail Kit Mounted: RKM114*
• VisualStation: VS960HD/VS360HD
• Surveillance Device License Pack

RS1221RP+ :

• DDR4 ECC SODIMM: D4ES01-4G/D4ES01-8G/D4ECSO-2666-16G
• Expansion Units: RX418
• 3.5″ SATA HDD: HAT5300
• 2.5″ SATA SSD: SAT5200
• M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
• M.2 SSD Adapter Card: M2D20
• 10GbE Network Interface Card: E10G18-T2/E10G18-T1/E10G17-F2
• Rail Kit Sliding: RKS1317
• VisualStation: VS960HD/VS360HD
• Surveillance Device License Pack
