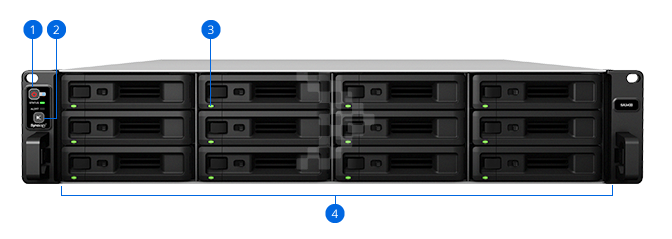

Mặt trước Nas Synology SA3400

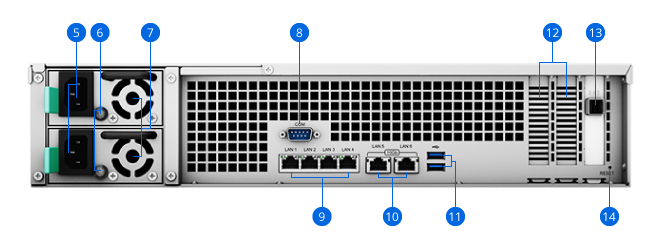

Mặt sau Nas Synology SA3400

1. Nút nguồn và đèn báo

8. Console port

2. Nút tắt tiếng bíp

9. Network 1GbE RJ-45

3. Đèn báo trạng thái ổ đĩa

10. Network 10GbE RJ-45

4. Khay ổ đĩa

11. Cổng USB 3.0

5. Nguồn điện

12. Khe PCIe mở rộng

6. Đèn báo nguồn

13. Cổng mở rộng

7. Quạt nguồn

14. Nút reset

Hardware Specifications

CPU

CPU Model

Intel Xeon D-1541

CPU Architecture

64-bit

CPU Frequency

8-core 2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

Memory

System Memory

16 GB DDR4 ECC RDIMM

Memory Module Pre-installed

16 GB (16 GB x 1)

Total Memory Slots

4

Memory Expandable up to

128 GB (32 GB x 4)

Notes

• For more information on memory upgrade limitations.
• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

12

Maximum Drive Bays with Expansion Unit

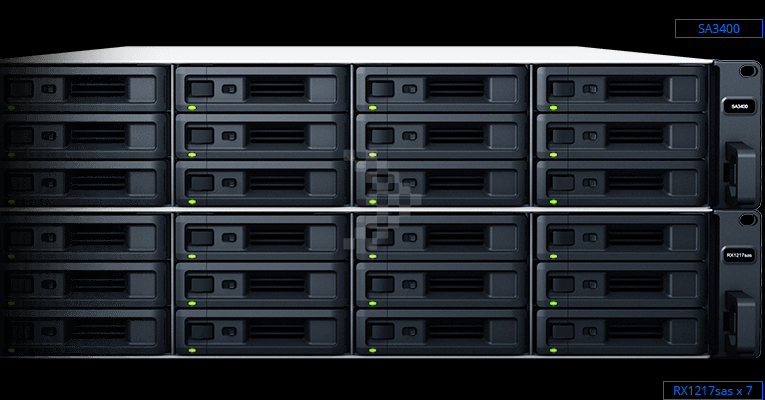

96 (RX1217sas) / 180 (RX2417sas)

Compatible Drive Type*

• 3.5″ SAS HDD
• 2.5″ SAS HDD
• 2.5″ SAS SSD
• 3.5″ SATA HDD
• 2.5″ SATA HDD
• 2.5″ SATA SSD

Maximum Internal Raw Capacity

192 TB (16 TB drive x 12) (Capacity may vary by RAID types)

Maximum Raw Capacity with Expansion Units

1,536 TB (192 TB + 16 TB drive x 84) (Capacity may vary by RAID types)

Maximum Single Volume Size*

• 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)
• 108 TB

Hot Swappable Drive

Notes

• “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit.
• Each internal volume (may consist of multiple drives) is expandble up to 108TB (with memory less than 32GB) or 200TB (with memory equal to or greater than 32GB).

External Ports

RJ-45 1GbE LAN Port

4 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port

2 (with Link Aggregation / Failover support)

USB 3.0 Port

2

Expansion Port

1

PCIe

PCIe Expansion

2 x Gen3 x8 slots (x8 link)

Add-In-Card Support

PCIe Network Interface Card

File System

Internal Drives

• Btrfs
• EXT4

External Drives

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*

Notes

exFAT Access is purchased separately in Package Center.

Appearance

Form Factor (RU)

2U

Size (Height x Width x Depth)

88 mm x 482 mm x 724 mm

Weight

14.5 kg

Rack Installation Support*

4-post 19″ rack (Synology Rail Kit – RKS1317)

Notes

The rail kit is sold separately

Others

System Fan

80 mm x 80 mm x 4 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan

Power Recovery

Noise Level*

49.8 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter

500 W

Redundant Power Supply

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

137.17 W (Access) 70.95 W (HDD Hibernation)

British Thermal Unit

468.04 BTU/hr (Access) 242.09 BTU/hr (HDD Hibernation)

Notes

• Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

• UL
• EAC
• VCCI
• CCC
• RCM
• KC
• FCC
• CE
• BSMI

Warranty

5 Years

Notes

The warranty period starts from the purchase date as stated on your purchase receipt.
